0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
Specifications
Brand Name :
hynall
Model Number :
HNP102
Certification :
RED, FCC, RoHS
Place of Origin :
shenzhen
MOQ :
200pcs
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
30000pcs per month
Delivery Time :
4 weeks
Packaging Details :
box
Input voltage :
12V DC
Input current :
≥8mA
Output signal :
0~10V / PWM
Operation temperature :
-20 ℃ ~ + 70 ℃ .
IP rate :
IP20
Type :
daylight sensor
Theory :
Doppler
Description

Model name: HNP102 0-10v tri-level dimming and timer function daylight sensor

This model is a good choice for intelligent daylight sensor, simple DIP switch setting andd 0-10v dimming daylight sensor.

Advantage:

1.Tri-level dimming, not only for simple ON/OFF control,save more energy.

2.Dual-processor technology, distinguish natural light and artificial light (lamp) from behind the diffuser, authentic daylight

sensor for built-in application.

3. You can have multiple combination options to be setted for 8 pin DIP switch.

4. Customized service: Yes

Product Information:

Input voltage: 12 - 24V DC.
Input current: ≥8mA.
*Output signal: 0~10V / PWM.

8 pin DIP switch setting, multiple options to meet
different customer demands.


Source current / Sink current: Max. 20mA;
0-10V leads can not be short-circuit.

Super compact, flexible to be integrated into any
suitable fixtures.

Built-in timer, for end user to specify desired period to
keep the light 100% on before dim down.

Operation temperature: -20 °c ~ + 70 °c.

RoHS compliant.


Settings by DIP switch:

Daylight Threshold:

This is the threshold for the daylight sensor to switch on & off.
“Lux on”value means the daylight sensor will switch on when detected natural light is less than it.
“Lux off”value means the daylight sensor will switch off when detected natural light is more than it.
Note: Lux-on sampling time--10s; Lux-off sampling time--30s.
*when set as“ Disable”, the daylight sensor will always be 100% on in both day and night.

0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler

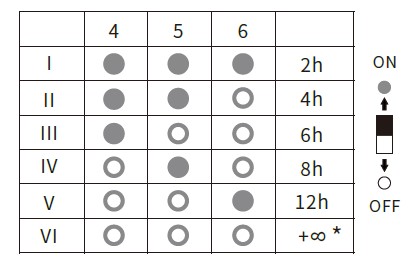

Timer period

This is the period for the lamp to keep 100% on when natural light is below set threshold.


*when set as“+ ”, this daylight sensor will become a simple on & off daylight sensor, switched on 100% at insufficient natural light, switches off at enough natural light.

 0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler

Dimming level

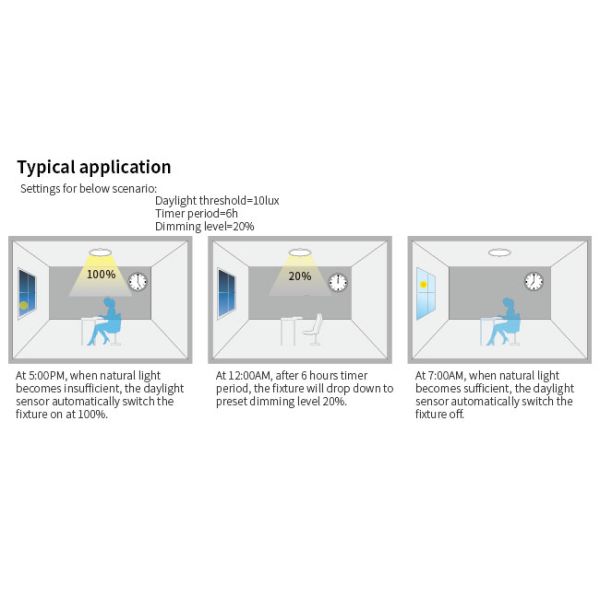

After the timer period, if the natural light is still insufficient, the lamp will drop to a pre-defined dimming level. This dimmed level will sustain until the natural light becomes enough and the daylight sensor switch
off totally.


* when set as 0%, means the daylight sensor will directly switch off right after the timer period elapses regardless of the natural light, even in the mid-night.

 0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler

0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler

0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler

0-10v Dimming Timer Harvest Sensor Switch HNP102 12VDC Input PWM Doppler
