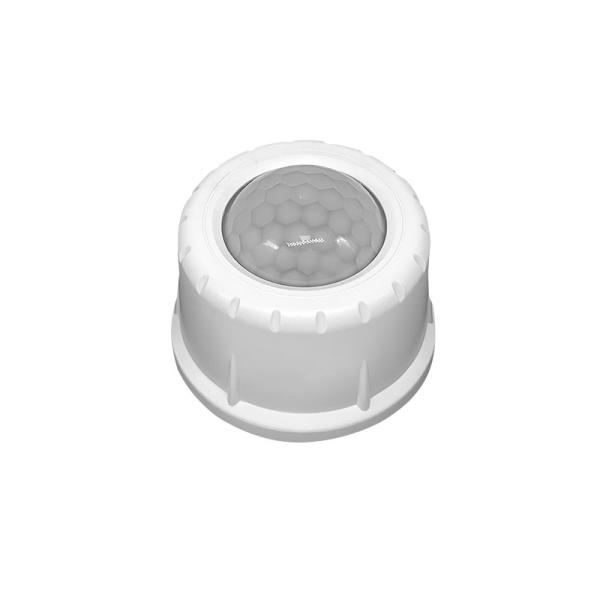

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor
Specifications
Brand Name :
hyanll
Model Number :
HNB158DLPIR-C
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T
Supply Ability :
20000 per month
Delivery Time :
3~4 weeks
Packaging Details :
45*30*23cm
Usage :
Street light etc. outdoor lighting
Setting :
SILVAIR bluetooth mesh app,support IOS system
Name :
HNB158DLPIR-C
Output :
DALI
Size :
57mm in diameter
Description

Model name: HNB158DLPIR-C Zhaga book18 DALI & SILVAIR BLE PIR moion sensor


Feature:

Bluetooth operation frequency 2.4GHz-2.483GHz.
Bluetooth transmission power: 4dBm.
Bluetooth transmission range: 10-30m (Typical indoor).
Aux. sensor power supply:
Input voltage: 12-24V DC.
Input current: max. 25mA.
Self-contained DALI-2 bus power supply.
DALI-2 output (max. 4 devices), task tuning (1-100%).
Super compact size(o57 only), easy and small enough to be integrated.
Specially designed for UFO highbay fixtures, shoeboxes, wallpacks, streetlights, etc., simple plug and play.
If the lighting fixture manufacturers / contractors do
not want the sensor function, they just need to easily
remove the sensor head and put the cover cap on, the
fixture becomes standard non-sensor control fixture.
Autonomous sensor-based control.
OTA firmware upgrade.
Individual / group addressing.
Decentralized control (no single point of failure).
Detection range up to max. 16-18m in diameter.
Mounting height: max. 12m.
Operation temperature: -20 °c ~ +60 °c.
RoHS compliant.
IP rating: IP65.

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

HNB158DLPIR-C Zhaga Book 18 Bluetooth Mesh App Control Daylight Harvest PIR DALI-2 Motion Sensor

Why Choose Us:

1. R&D strength: 10+ year experiences,alomost 100% success rate, Zhaga book20 series is comming soon.
2. Sales strength: Professional sales,long term after-sale service promised.
3. Complete&strict QC system many years experienced officers,complete QN system including IQC,IPQC,FQC,QN AND QE
4. Product quality Under 0.1% defected rate. 5 years warranty
5. Certification: CE,ROHS, ETL, FCC, RED
8. OEM/ODM ability: Over 7 years OEM/ODM experience

Hynall SILVAIR motion sensor product list
Product Daylight Motion Remark
On/off Daylight monitoring Daylight harvest
HNB135PIR ✓ ✓ 0-10V output, special for indoor lighting
HNB135 converter 0-10V output, special for indoor lighting
HNB136 converter 0-10V output, special for indoor lighting
HNB136CCT converter, tunable white function 0-10V output, special for indoor lighting
HNB156MW ✓ ✓ MW+BLE, special design for outdoor lighting
HNB156 converter BLE,special design for outdoor lighting
HNB158PIR ✓ ✓ PIR+BLE, special design for outdoor lighting
HND150V/D AC input, matching all of motion sensor head and converter of Zhaga book18 series

FAQ:

Q1, What is the warranty?

A: We offer a 5 year warranty along with a comprehensive after sale service.

Q2, Are the products certified?

A: Yes, we are fully certified for the EU, US and other markets. If you require any other forms of certificates, do get in touch.
