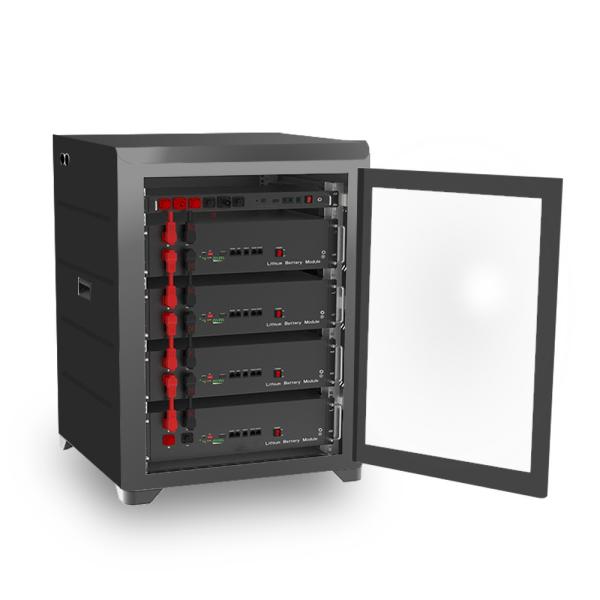

51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
Specifications
Brand Name :
PVkingdom
Model Number :
PV-RESS
Certification :
CE/RoHS/UN38.3/MSDS
Place of Origin :
China
MOQ :
10 units
Price :
negotiable
Supply Ability :
500 units/week
Packaging Details :
wooden Case
Delivery Time :
5-7 working days
Payment Terms :
T/T
Battery Type :
LiFePO4, Lithium Ion
Application :
Home Appliances, BOATS, Solar Energy system..
Nominal Voltage :
24V/25.6V 48V/51.2V
Cycle life :
over 6000 times
Communication Port :
CAN, RS485
Warranty :
5-10 Years
OEM/ODM :
Accepatable
Output Power Range :
3-50kwh
Grid connection :
Off grid, Hybrid grid
Type :
All-in-one
Description

48V 51.2V 5kwh Rack Mount LiFePO4 Battery Residential Energy Storage Solar Energy Storage lithium battery pack

PVkingdom Deep Cycle 48V LiFePO4 Battery Pack *Using standard 3U size, battery energy up to 5.12 kwh. *Using stable quality and long life aluminum shell LFP battery. *With charging current limiting function, maximum 15 units parallel connect on Adopts dual-port output, more convenient for parallel. *Accurate LED power display and status indication.

*Grade-A LifePo4 battery, neat and safe wiring, no cumbersome redundant lines, automotive-grade design ideas, safe and beautiful.
Product Paramenters
Lifepo4 battery Options
Model
Nominal Voltage
Nominal Capacity
Energy
PV-25.6V 100AH
25.6V
100AH
2560WH
PV-25.6V 150AH
25.6V
150AH
3840WH
PV-25.6V 200AH
25.6V
200AH
5120WH
PV-25.6V 250AH
25.6V
250AH
6400WH
PV-48V 50AH
48V/51.2V
50AH
2400WH
PV-48V 100AH
48V/51.2V
100AH
4800WH
PV-48V 150AH
48V/51.2V
150AH
7200WH
PV-48V 200AH
48V/51.2V
200AH
9600WH
PV-48V 250AH
48V/51.2V
250AH
12000WH
PV-48V 300AH
48V/51.2V
300AH
14400WH
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
51.2V 5kwh Rack Mount LiFePO4 Battery 48V Rack Mount Lithium Battery
Lithium Solar Energy Storage Cabinet ESS Options
Module model
48/51.2V50Ah
48/51.2V80Ah
48/51.2V100Ah
48/51.2V150Ah
48/51.2V200Ah
48/51.2V300Ah
Number of modules
4PCS
4PCS
4PCS
4PCS
4PCS
4PCS
Battery Type
LiFePO4
LiFePO4
LiFePO4
LiFePO4
LiFePO4
LiFePO4
System Parameters
Rated voltage
48/51.2V
48/51.2V
Rated capacity
50Ah
80Ah
100Ah
150Ah
200Ah
300Ah
Rated energy
10.24KWh
16.37KWh
21.5KWh
32.76KWh
47.1KWh
57.34KWh
Rated charging current
25A
40A
50A
80A
115A
140A
Maximum charging current
50A
80A
105A
160A
230A
280A
Rated discharge current
50A
80A
105A
160A
230A
280A
Maximum discharge current
100A
160A
210A
320A
460A
460A
Charging temperature
0-55℃
0-55℃
Discharge temperature
-10-55℃
-10-55℃
Operating temperature
15-25℃
15-25℃
Cooling method
Natural cooling
Natural cooling
Relative humidity
5%-95%
5%-95%
Operating altitude
≤2000M
≤2000M
Cycle life
≥6000@80%DOD,0.5C/0.5C,25℃
≥6000@80%DOD,0.5C/0.5C,25℃
Communication method
CAN/RS485/RS232/OPTIONAL
CAN/RS485/RS232/OPTIONAL
Protective function
Over temperature, over current, short circuit, over charge, over discharge, etc.
Over temperature, over current, short circuit, over charge, over discharge, etc.
Display screen
LCD screen/Not(optional)
LCD screen/Not(optional)
Design service life
≥10 years
≥10 years
Certification
UN38.3/UL/IEC/CE/MSDS
UN38.3/UL/IEC/CE/MSDS
Cabinet size
To be confirmed
To be confirmed
To be confirmed
To be confirmed
To be confirmed
To be confirmed
Total weight
To be confirmed
To be confirmed
To be confirmed
To be confirmed
To be confirmed
To be confirmed
