16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
Specifications
Brand Name :
Goodwe
Model Number :
U Series 16.2kwh
Certification :
CE/RoHS/UN38.3/MSDS
Place of Origin :
China
MOQ :
10 units
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500 units/week
Delivery Time :
5-7 working days
Packaging Details :
wooden Case
Name :
Stackable LiFePO4 Battery 16.2kwh
Nominal Voltage :
24V/25.6V 48V/51.2V
Communication Port :
CAN, RS485
Output Power Range :
3-50kwh
Grid connection :
Off grid, Hybrid grid
Application :
Home Appliances, BOATS, Solar Energy system..
Cycle life :
over 6000 times
Warranty :
5-10 Years
Type :
All-in-one
OEM/ODM :
Accepatable
Description

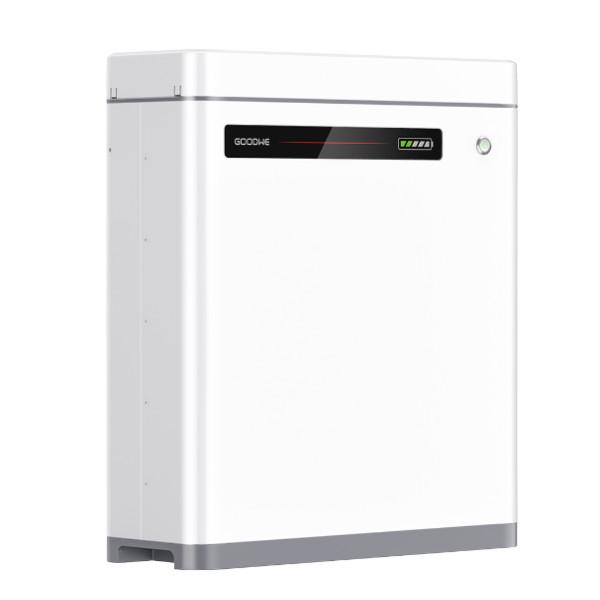

Goodwe Lynx Home U Series 16.2kWh Low voltage battery Stackable LiFePO4 Battery Residential Energy Storage

Rated Energy (kWh)*1 5.4 10.8 16.2 21.6 27.0 32.4
Usable Energy (kWh)*2 4.8 9.6 14.4 19.2 24.0 28.8
Cell Type LFP (LiFePO4)
Nominal Voltage (V) 51.2
Operating Voltage Range (V) 48 ~ 57.6
Nominal Dis- / Charge Current (A)*3 50 100 100 100 100 100
Nominal Power (kW)*3 2.88 5.76 5.76 5.76 5.76 5.76
Communication CAN
Weight (kg) 57 114 171 228 285 342
Dimensions (W × H × D mm) 505 × 570 × 175 (LX U5.4-L)
Operating Temperature Range (°C) Charge: 0 ~ +50 / Discharge: -10 ~ +50
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 2000
Ingress Protection Rating IP65
Mounting Method Wall Mounted / Grounded
Standard and Certification Safety IEC62619, IEC62040, CEC
EMC CE, RCM
Transportation UN38.3

16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack

16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack

16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack

16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack

16.2kWh Stackable LiFePO4 Battery Residential Energy Storage Powerwall Pack
