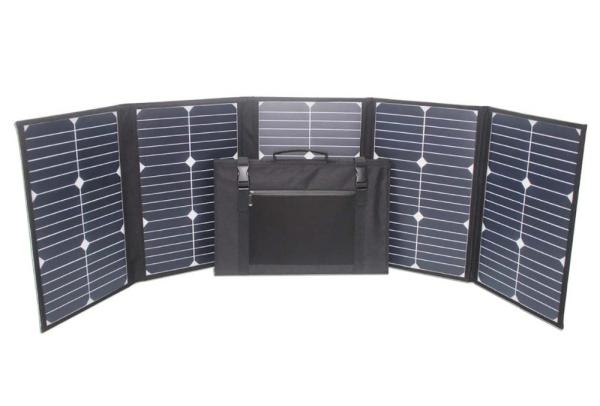

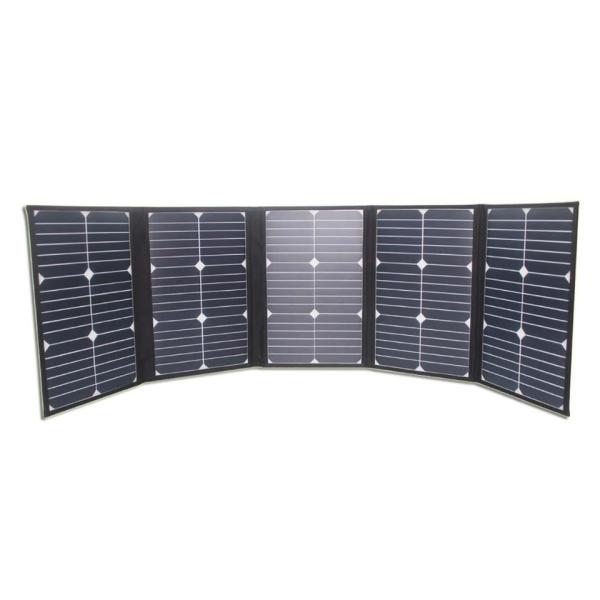

Sunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
Sunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
Sunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
Sunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
Sunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
Sunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
Specifications
Brand Name :
JYG
Model Number :
JYG-100W-M
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union, , T/T, L/C
Supply Ability :
Mini custom solar panels
Delivery Time :
7-15days
Packaging Details :
standard export package 2pcs/carton
Name :
12v solar panel sunpower solar panels motorhome solar panels folding solar panels for camping
Material :
sunpower
Output peak voltage :
20W*5pcs ,can be customized
Max power voltage :
18V can be customized
Max power current :
5.55A
Application :
home system.outdoor travel,camper
Warranty :
25years
Description

12v solar panel sunpower solar panels motorhome solar panels folding solar panels for camping

1, Battery and Generator Ready with three choices: ONE – build-in charge controller makes it ready for 12V battery; TWO -MC4 connector design for a solar generator; THREE -charge 12V RV battery and solar generator simultaneously
2, Portable: two 50 watts solar panels attached in pairs for portability. Case design facilitates transportation and helps keep solar panel safe when storing
3, Waterproof: the kit is IP65 waterproof, outdoor durability balances portability with solid frame build; 20A waterproof charge controller on the back
4, Easy Set-up: pre-installed stand allows for easy and quick set-up. MC4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV or camper, please contact JYG for adapters
flex solar panel

Date Sheet of solar panel
Electrical Date

Mono

JYG-M-100W

Nominal peak power(Pmax)100W
Maximum Power Voltage(Vmp)18V
Maximum Power current(Imp)5.55A
Short-circuitcurrent(Isc)6.06A
Open-cicuit Voltage(Voc)21.6V
Optimized cell efficiency17%-19%


Limits

Operating temperature-40°C to +85°C
Maximum system voltage1000VDC


Temperature and Coefficients

NOCT48°C+/-2°C
Current temperature coefficient%/K0.06+/-0.01
Voltage temperature coefficientmV/K-(78+/-10)
Power temperature coefficient%/K-(0.5+/-0.05)

Additional Data

Number of cells and type of connection156*156
Dimensions(MM)510*666*70MM/ 3.8 kgs
Weight(KG)100W:3.5kg

Guaranteed Power Output15 year:90% of its nominal power rating
25 yesr:80% of its nominal power rating
Warranty PeriodReplacement for manufacturing defects within 5 years
CertificatesCE,RoHS,FCC,TUV
Cellsmonocrystalline silicon photovoltaic cell
olar charger/solar panel phone charger/cell phone solar chargerSunpower Foldable Solar Panel Motorhome Fold Up Solar Panels For Camping
