Specifications
Brand Name :
JYG
Model Number :
JYG-5W-M
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
Western Union, , T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-15days
Packaging Details :
standard export package 2pcs/carton
Name :

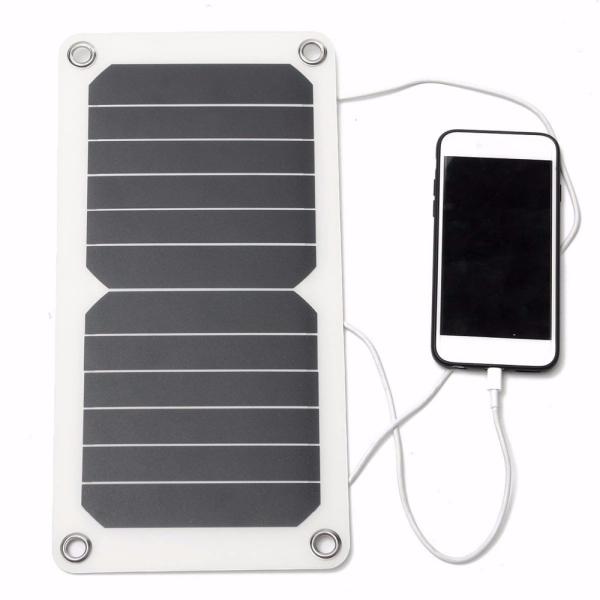

A Grade sunpower Solar Panels 5V5W foldable portable solar charger kit
Material :
sunpower
Output peak voltage :
5W
Max power voltage :
0.5V 5V 6V 9V 18Vcan be customized
Max power current :
1A
Application :
outdoor traving ,camping and so on
Warranty :
1years
Output :
5V 0.34A
Description

A Grade sunpower Solar Panels 5V5W foldable portable solar charger kit

Electrical Date

Mono JYG-5-M
Nominal peak power(Pmax) 5W
Maximum Power Voltage(Vmp) 5.0V
Maximum Power current(Imp) 1A
Short-circuitcurrent(Isc) 1.1A
Open-cicuit Voltage(Voc) 6V
Optimized cell efficiency 19.5%-21%

Limits

Operating temperature -40°C to +85°C
Maximum system voltage 1000VDC

Temperature and Coefficients

NOCT 48°C+/-2°C
Current temperature coefficient %/K 0.06+/-0.01
Voltage temperature coefficient mV/K -(78+/-10)
Power temperature coefficient %/K -(0.5+/-0.05)

Additional Data

Number of cells and type of connection
Dimensions(MM) 260*140.*2.5MM
Weight(KG) 5W:0.2KG
Container Loading

STC:AM1.5,1000W/㎡,working temperature :25℃,

Humidity:<80%,

Basic Cosmetic Specification:

Ø Delaminations or bubbles do not form a continuous path between any part of the electrical circuit and the edge of module.

  • Not any cracks, foreign materials or dirt of cells.
  • No scratch in the glass or the frame.
  • No pierce in the back sheet.
