Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
Specifications
Brand Name :
JYG
Model Number :
JYG-8W-M
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
Western Union, , T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-15days
Packaging Details :
standard export package 2pcs/carton
Name :
A Grade Round Small Glass laminated Solar Panels 8V 8W For Outdoor light
Material :
monocrystalline cell
Output peak voltage :
8W
Max power voltage :
0.5V 5V 6V 9V 18Vcan be customized
Max power current :
0.44A
Application :
outdoor traving ,camping and so on
Warranty :
5years
Output :
18V 0.485A
Description

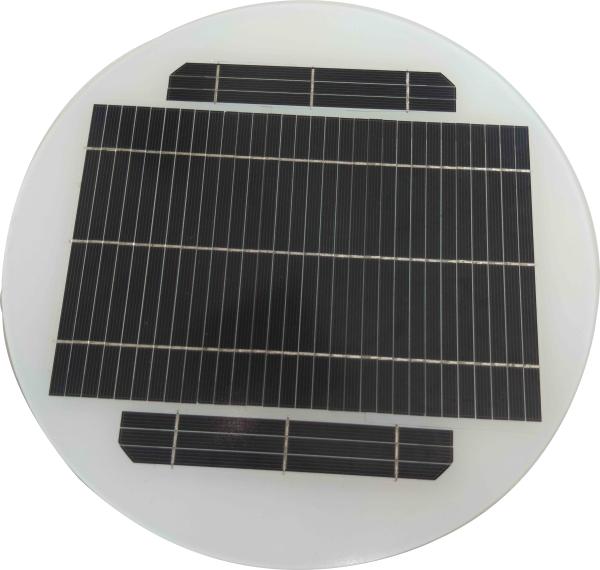

A Grade Round Small Glass laminated Solar Panels 8V 8W For Outdoor light

Electrical Date

Mono JYG-8-M
Nominal peak power(Pmax) 8W
Maximum Power Voltage(Vmp) 6V
Maximum Power current(Imp) 0.44A
Short-circuitcurrent(Isc) 0.48A
Open-cicuit Voltage(Voc) 7.2V
Optimized cell efficiency 19.5%-21%

Limits

Operating temperature -40°C to +85°C
Maximum system voltage 1000VDC

Temperature and Coefficients

NOCT 48°C+/-2°C
Current temperature coefficient %/K 0.06+/-0.01
Voltage temperature coefficient mV/K -(78+/-10)
Power temperature coefficient %/K -(0.5+/-0.05)

Additional Data

Number of cells and type of connection
Dimensions(MM) 300*300.*4.5MM
Weight(KG) 8W:0.5KG
Container Loading

STC:AM1.5,1000W/㎡,working temperature :25℃,

Humidity:＜80%,

Basic Cosmetic Specification:

Ø Delaminations or bubbles do not form a continuous path between any part of the electrical circuit and the edge of module.

  • Not any cracks, foreign materials or dirt of cells.
  • No scratch in the glass or the frame.
  • No pierce in the back sheet.

Outdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar PanelsOutdoor Light Sunpower Flexible Solar Cells , 8V 8W Thin Film PV Solar Panels
