Specifications
Model Number :
SWS-5048
Brand Name :
SUNWAY
Place of Origin :
Anhui, China
Price :
$800.00/pieces 1-4 pieces
Battery Type :
LiFePO4
Output Power Range :
10~20 kWh
Dimension (L*W*H) :
/
Weight :
/
System Type :
Stackable, Rack-mounted
Type :
All-in-one
Communication Port :
CAN, RS485
Grid connection :
Off grid, Hybrid grid
Application :
Solar storage Appliances
Capacity :
Lifepo4, lead acid gel battery
Battery Cycle life :
6000 Cycles @ 80%DOD
Nominal Voltage :
48Vdc / 51.2Vdc
Certificate :
CE/RoHS/UN38.3/MSDS
Warranty :
20 Years
Battery cell :
A Grade 3.2V
Inverter Matched :
Deye/Growatts/Sofar/etc
BMS :
Built-in BMS Protection
Description

48v 5kw 10kw Battery 10kwh 20kwh Energy Lithium Stackable Module Solar Ion Battery LiFePO4

48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage

Key Features

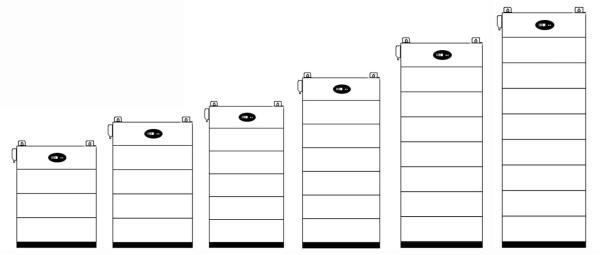

Wall type: Easy connection, support max 8 set parallel connection. Longer Cycle Life : Offers up to 5000 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity Wider Temperature Range : -20ºC~60ºC Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
Electrical
Characteristics
Nominal Voltage
51.2
Nominal Capacity
100Ah/200Ah
Energy
5Kwh ,10Kwh
Internal Resistance(AC)
≤20mΩ
Cycle Life
>5000 cycles @ 1C 80% DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C
Standard Charge
Charge Voltage
58.4±0.2V
Charge Current
1C max, default 0.5C
Max. Charge Current
1C max, default 0.5C
Charge Cut-off Voltage
62.4±0.2V
Standard Discharge
Continuous Current
1C max, default 0.5C
Discharge Cut-off Voltage
43.2V
Environmental
Charge Temperature
0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity
Discharge Temperature
-20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity
Humidity
Storage Temperature
-20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity
IP Class
IP30
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
48v 5kw Solar Backup Power For Home Solar Pv And Battery Storage
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
