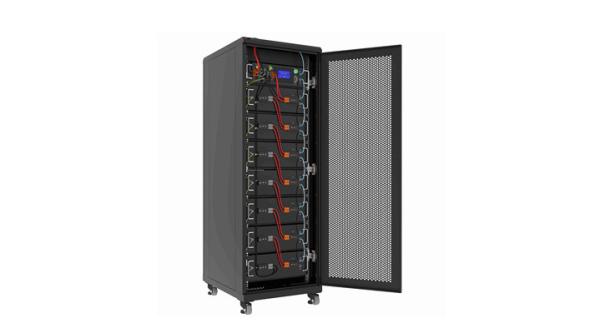

20480Wh Lithium Storage Battery RS232 RS485 Li Ion Phosphate Battery
20480Wh Lithium Storage Battery RS232 RS485 Li Ion Phosphate Battery
Specifications
name :
LITHIUM IRON PHOSPHATE BATTERY
model :
MITPI19-48400
Nominal Voltage :
51.2V
Nominal Capacity :
400Ah
Energy :
20480 Wh
Communication :
CAN2.0/RS232/RS485
Place of Origin :
China
Brand Name :
MITSCN
Certification :
ISO
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Solar Panel Carton box by pallet or ply wooden box
Delivery Time :
5-8 working days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Month
Description

LITHIUM IRON PHOSPHATE BATTERY —— MITPI19-48400

ELECTRICAL PERFORMANCE

Nominal Voltage 51.2 V
Nominal Capacity 400 Ah
Energy 20480 Wh
Communication CAN2.0/RS232/RS485
Resistance ≤50 mΩ @ 50% SOC
Efficiency >96%
Recommended Charge Current 100A
Maximum Continuous Discharge Current 100 A
Maximum load power 5KW
Recommended Charge Voltage 57.6V
BMS Charge Cut-Off Voltage <58.4 V (3.65V/Cell)
Reconnect Voltage >57.6 V (3.6V/Cell)
Balancing Voltage <57.6 V (3.6V/Cell)
Balancing open voltage 55.2V (3.45V/Cell)
Recommended Low Voltage Disconnect 44V (2.75V/Cell)
BMS Discharge Cut-Off Voltage >40.0V (2s) (2.5V/Cell)
Reconnect Voltage >44.0 V (2.75V/Cell)

MECHANICAL PERFORMANCE

Dimension (L x W x H) 537 x 498 x 830 mm
Approx. Weight 190 kg
Terminal Type DIN POST
Terminal Torque 80~100 in-lbs (9~11 N-m)
Case Material SPPC
Enclosure Protection IP65

COMPLIANCE

Certifications CE (battery) UN38.3 (battery)
UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9

MECHANICAL PERFORMANCE

Discharge Temperature -4~131 ºF (-20~55 ℃ )
Charge Temperature -4~113 ºF (0~45 ℃ )
Storage Temperature 23~95 ºF (-5~35 ℃ )
BMS High Temperature Cut-Off 149 ºF (65 ℃ )
Reconnect Temperature 131 ºF (55 ℃ )
Enclosure Protection IP65
