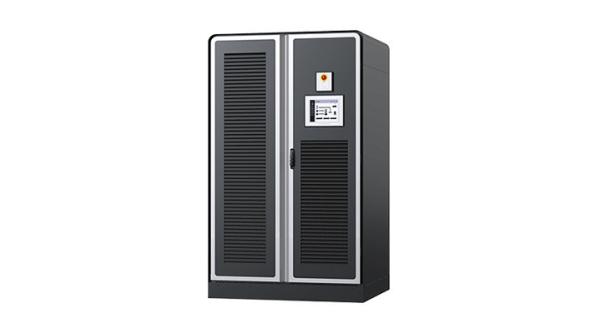

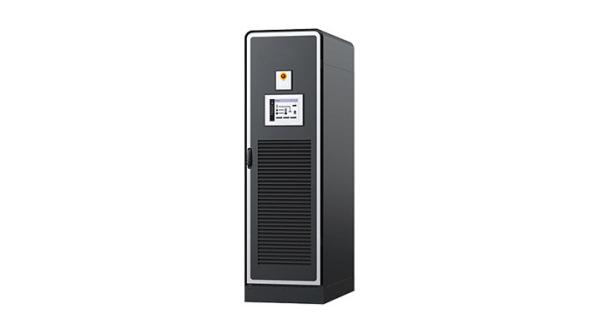

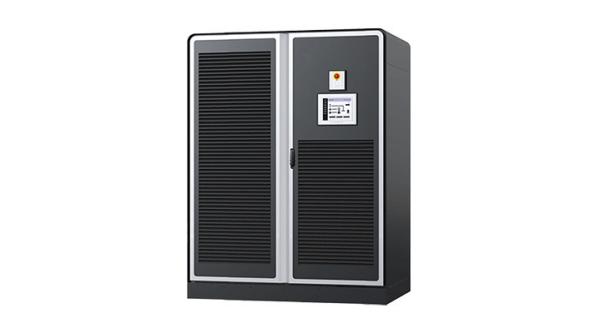

50kW 100kW 150kW PCS Battery Storage Power Conversion System Energy Storage
50kW 100kW 150kW PCS Battery Storage Power Conversion System Energy Storage
50kW 100kW 150kW PCS Battery Storage Power Conversion System Energy Storage
50kW 100kW 150kW PCS Battery Storage Power Conversion System Energy Storage
50kW 100kW 150kW PCS Battery Storage Power Conversion System Energy Storage
50kW 100kW 150kW PCS Battery Storage Power Conversion System Energy Storage
Specifications
type :
BESS Energy Storage System
Rated output power :
50kW 100kW 150kW
Model :
EPCS50,EPCS100 EPCS 150,EPCS200,EPCS250
Max. Capacity of system :
50kW,100kW 150kW,200kW, 250kW
Power module model :
PCM50 PCM50
application :
Solar Energy Storage
Power module capacity :
50kW 50kW
Dimension :
600*1000*2000(W*D*H)mm 1200*1000*2000(W*D*H)mm
Place of Origin :
China
Brand Name :
MITSCN
Certification :
ISO
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Solar Panel Carton box by pallet or ply wooden box
Delivery Time :
5-8 working days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Month
Description

PCS systems

Model : EPCS50,EPCS100 EPCS 150,EPCS200,EPCS250 Max. Capacity of system : 50kW,100kW 150kW,200kW, 250kW Power module model : PCM50 PCM50 Power module capacity : 50kW 50kW Dimension : 600*1000*2000(W*D*H)mm 1200*1000*2000(W*D*H)mm

High efficiency integrated PCS systems based on 50kW module

Model : EPCS50,EPCS100 EPCS 150,EPCS200,EPCS250

Max. Capacity of system : 50kW,100kW 150kW,200kW, 250kW

Power module model : PCM50 PCM50

Power module capacity : 50kW 50kW

Dimension : 600*1000*2000(W*D*H)mm 1200*1000*2000(W*D*H)mm

Model EPCS50 EPCS100 EPCS150 EPCS200 EPCS250
Battery interface parameters Voltage range DC 680V-900V (without TX) / 580V-900V (with TX)
Max DC channel Qty 1 2 3 4 5
Single channel maximum current 85A
AC grid-connected parameters Output 3W+N+PE/3W+PE 3W+N+PE/3W+PE
Rated power 50kW l00kW 150kW 200kW 250kW
Rated voltage AC 380V/400V
Rated Current 75A 151A 227A 303A 379A
Voltage range ‘-15% ~ +10%
Rated frequency 50Hz/60Hz
Frequency range ±2Hz
Power factor -0.9 〜+0.9
Output harmonics ≤3%
Charge- discharge transition time < 100ms
AC off-grid parameters Output 3W+N+PE/3W+PE
Rated power 50kW l00kW 150kW 200kW 250kW
Rated voltage AC 380V/400V
Rated frequency 50Hz/60Hz
Rated Current 75A 151A 227A 303A 379A
Voltage accuracy 0.01
Frequency accuracy ±0.2Hz
Output voltage harmonics 3%@ linearfull load
Unbalanced load capacity 100%
Overload capacity 105%]: continuous operation; (105% -120%]: lOmin; (120% -125%] : Imin; 125%); stop operation
Environment Working temperature -20°C〜55°C (>45°C derating)
Storage temperatu re -40°C〜70°C (No batteries)
Relative humidity 0% RH 〜95% RH, No condensation
Working altitude <45°C, 2000m ； 2000m 4000m Derating
Noise < 75dB
Others Communication CAN/RS485
Isolation Isolation Tranformer Optional
Protection IP20
Cooling Air cooling, intelligent fan regulation
Maximum efficiency 98.5% (no transformer)
Dimension W*D*H 600*1000*2000 1200*1000*2000
Weight 300kg 330kg 500kg 530kg 560kg
Certification EN50549/G99/IEC62477-1/EN61000/IEC61727/IEC62116

High efficiency integrated PCS systems based on 100kW module

Model:EPCS300,EPCS400,EPCS500,EPCS600

Max. Capacity of system:300kW,400kW,500kW,600kW

Power module model:PCM100

Power module capacity:100kW

Dimension:1400*1000*2000(W*D*H)mm

Model EPCS300 EPCS400 EPCS500 EPCS600
Battery interface parameters Voltage range DC 680V-900V (without TX) / 580V-900V (with TX)
Max DC channel Qty 3 4 5 6
Single channel maximum current 170A
AC grid-connected parameters Output 3W+N+PE/3W+PE
Rated power 300kW 400kW 500kW 600kW
Rated voltage AC 380V/400V
Rated Current 454A 606A 758A 909A
Voltage range ‘-15% ~ +10%
Rated frequency 50Hz/60Hz
Frequency range ±2Hz
Power factor -0.9 〜+0.9
Output harmonics ≤3%
Charge- discharge transition time < 100ms
AC off-grid parameters Output 3W+N+PE/3W+PE
Rated power 300kW 400kW 500kW 600kW
Rated voltage AC 380V/400V
Rated frequency 50Hz/60Hz
Rated Current 454A 606A 758A 909A
Voltage accuracy 1%
Frequency accuracy ±0.2Hz
Output voltage harmonics 3%@ linearfull load
Unbalanced load capacity 100%
Overload capacity 105%]: continuous operation; (105% -120%]: lOmin; (120% -125%] : Imin; 125%); stop operation
Environment Working temperature -20°C〜55°C (>45°C derating)
Storage temperatu re -40°C〜70°C (No batteries)
Relative humidity 0% RH 〜95% RH, No condensation
<45°C, 2000m ； 2000m 4000m Derating
Noise < 75dB
Others Communication CAN/RS485
Isolation Isolation Tranformer Optional
Protection IP20
Cooling Air cooling, intelligent fan regulation
Maximum efficiency 98.5% (no transformer)
Dimension W*D*H 1400*1000*2000 1400*1000*2000
Weight 600kg 650kg 700kg 750kg
Certification EN50549/G99/IEC62477-1/EN61000/IEC61727/IEC62116

Integrated PCS systems with wide voltage range

Model: EHPCS-50/50,EHPCS-100/50 EHPCS-150/50,EHPCS-200/50,EHPCS-250/50

Max. Capacity of system:50kW,100kW 150kW,200kW, 250kW

Power module model:PCMZ50 PCMZ50

Power module capacity:50kW 50kW

Dimension:600*1000*2000(W*D*H)mm 1200*1000*2000(W*D*H)mm

Model EPCS50/50 EPCS100/50 EPCS150/50 EPCS200/50 EPCS250/50
Battery interface parameters Voltage range DC 200V~DC 800V
Full Load Voltage range DC 370V~DC 800V
Max DC channel Qty 1 2 3 4 5
Single channel maximum current 135A
AC grid-connected parameters Output 3W+N+PE/3W+PE
Rated power 50kW l00kW 150kW 200kW 250kW
Rated voltage AC 380V/400V
Rated Current 75A 151A 227A 303A 379A
Voltage range -15% ~ +10%
Rated frequency 50Hz/60Hz
Frequency range ±2Hz
Power factor -0.9 〜+0.9
Output harmonics ≤3%
Charge- discharge transition time < 100ms
AC off-grid parameters Output 3W+N+PE/3W+PE
Rated power 50kW l00kW 150kW 200kW 250kW
Rated voltage AC 380V/400V
Rated frequency 50Hz/60Hz
Rated Current 75A 151A 227A 303A 379A
Voltage accuracy 0.01
Frequency accuracy ±0.2Hz
Output voltage harmonics 3%@ linearfull load
Unbalanced load capacity 100%
Overload capacity 105%]: continuous operation; (105% -120%]: l0min; (120% -125%] : Imin; 125%); stop operation
Environment Working temperature -20°C〜55°C (>45°C derating)
Storage temperatu re -40°C〜70°C (No batteries)
Relative humidity 0% RH 〜95% RH, No condensation
Working altitude 2000m ； 2000m~4000m Derating
Noise < 75dB
Others Communication CAN/RS485
Isolation Isolation Tranformer Optional
Protection IP20
Cooling Air cooling, intelligent fan regulation
Maximum efficiency 98.5% (no transformer)
Dimension W*D*H 600*1000*2000 1200*1000*2000
Weight 320kg 370kg 570kg 620kg 670kg
Certification EN50549/G99/IEC62477-1/EN61000/IEC61727/IEC62116

Hybrid PCS system with solar access

Model:SPCS50 SPCS100 SPCS150

MPPT:50kW 100kW 150kW

PCS:50kW 100kW 150kW

Dimension:600*1000*2000(W*D*H)mm 1200*1000^2000(W*D* H)mm 1200*1000^2000(W*D* H)mm

Model EPCS50 EPCS100 EPCS150
Battery interface parameters Voltage range DC 200V~DC 700V
Full Load Voltage range DC 370V~DC 700V
Max DC channel Qty 1 2 3
Single channel maximum current 135A
Battery parameter Voltage range DC650V 〜DC850V
Maxcharging/discharging current 85A 170A 255A
AC grid-connected parameters Output 3W+N+PE/3W+PE
Rated power 50kW 100kW 150kW
Rated voltage AC 380V/400V
Rated Current 75A 151A 227A
Voltage range ‘-15% ~ +10%
Rated frequency 50Hz/60Hz
Frequency range ±2Hz
Power factor -0.9 〜+0.9
Output harmonics ≤3% (Rated power)
AC off-grid parameters Output 3W+N+PE/3W+PE
Rated power 50kW 100kW 150kW
Rated voltage AC 380V/400V
Rated frequency 50Hz/60Hz
Rated Current 75A 151A 227A
Voltage accuracy 1%
Frequency accuracy ±0.2Hz
Output voltage harmonics 3%@ linearfull load
Unbalanced load capacity 100%
Overload capacity 105%]: continuous operation; (105% -120%]: 10min; 120%); stop
Environment Working temperature -20°C〜55°C (>45°C derating)
Storage temperatu re -40°C〜70°C (No batteries)
Relative humidity 0% RH 〜95% RH, No condensation
Working altitude 2000m； 2000m~4000m Derating
Noise < 75dB
Others Communication CAN/RS485
Isolation No
On-off grid switching Yes
Protection IP20
Cooling Air cooling, intelligent fan regulation
Maximum efficiency 97.50%
Dimension W*D*H 600*1000*2000 1200*1000*2000 1200*1000*2000
Weight 550kg 750kg 850kg
