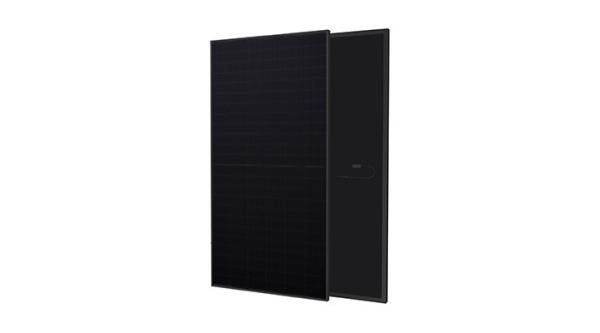

Mono Facial N Type Solar Modules 30A 555W Solar Panel 1500VDC
Mono Facial N Type Solar Modules 30A 555W Solar Panel 1500VDC
Specifications
Brand Name :
MITSCN
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
5-8 working days
Packaging Details :
Solar Panel Carton box by pallet or ply wooden box
power :
555W-575W
Product name :
182-144 black mono facial module
Dimensions of Module L*W*H :
2278x1134x30mm
model :
RS6-555_575NX
Maximum Series Fuse Rating :
30A
cell type :
n type solar modules
J-Box :
IP68 rated
type :
n type solar module
Maximum System Voltage :
1500VDC
Frame :
Anodized Aluminum Alloy
Description

RS6-555_575NX N-type (182-144 black mono-facial module)

Complete System and IEC Product Certification IEC 61215(2016),IEC 61730(2016) ISO9001: 2015:Quality Management System ISO14001: 2015:Environment Management System ISO45001:2018:Occupational Health and Safety Management System

· Suitable for ground power plants and distributed projects
· Advanced module technology delivers superior module efficiency
·Gallium-doped Wafer·Non destructive cutting ·MBB half-cut
· Excellent power generation performance
·Excellent IAM and Weak light response ·Low temperature ratings
·0.40% linear Power decline
· High module quality ensures long-term reliability
·Strict selected material ·Advanced technology ·Leading standard
· Ultra-hydrophilic self-cleaning coating techniques
Electrical Characteristics STC RS6-555NX-E3 RS6-560NX-E3 RS6-565NX-E3 RS6-570NX-E3 RS6-575NX-E3
Maximum Power (Pmax) 555W 560W 565W 570W 575W
Power Tolerance 0~+5W 0~+5W 0~+5W 0~+5W 0~+5W
Module Efficiency 21.48% 21.68% 21.87% 22.07% 22.26%
Maximum Power Current (Imp) 13.04A 13.10A 13.16A 13.21A 13.27A
Maximum Power Voltage (Vmp) 42.56V 42.75V 42.93V 43.15V 43.33V
Short Circuit Current (Isc) 13.81A 13.87A 13.93A 13.99A 14.05A
Open Circuit Voltage (Voc) 50.77V 51.01V 51.24V 51.48V 51.71V

Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)

Electerical Characteristics NOCT RS6-555NX-E3 RS6-560NX-E3 RS6-565NX-E3 RS6-570NX-E3 RS6-575NX-E3
Maximum Power (Pmax) 421.0W 424W 428.0W 432.0W 436.0W
Maximum Power Current (Imp) 10.51A 10.56A 10.61A 10.65A 10.70A
Maximum Power Voltage (Vmp) 40.06V 40.15V 40.34V 40.65V 40.75V
Short Circuit Current (Isc) 11.13A 11.18A 11.23A 11.28A 11.33A
Open Circuit Voltage (Voc) 48.68V 48.81V 49.05V 49.29V 49.53V

NOCT, lrradiance of 800W/m ², AM1.5, Ambient Temperature 20 °C, wind Speed 1m/s.

Mechanical Characteristics Characteristics
Cell Type Monop-type,182×182(±1)mm,144(6×24)Half-Cut cells Temperature Coefficient of Voc -0.26%/°C
Glass 3.2mm ,High Transmission,Low lron,Tempered Glass Temperature Coefficient of Isc +0.046%/°C
Frame Anodized Aluminum Alloy Temperature Coefficient of Pmax -0.31%/°C
Juction Box IP68 Rated, With Bypass Diodes Nominal Operating Cell Temperature (NOCT) 45°C±2°C
Dimension 2278x1134x30mm Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.l hey only serve for comparison among ditterent module types.
Output Cable 4 mm² (EU),300 mm,length can be customized
Weight 27kg
lnstallation Hole Location See Drawing Above

Packing Information Maximum Ratings
Container 40' HQ Operating Temperature -40°C~+85°C
Pallets per Container 20 Maximum System Voltage 1500VDC
Pieces per Container 720 Maximum Series Fuse Rating 30A
