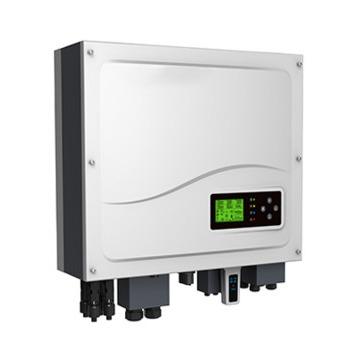

3000W 4000W Off Grid Solar Inverter 48v Split Phase Inverter Low Frequency
3000W 4000W Off Grid Solar Inverter 48v Split Phase Inverter Low Frequency
Specifications
name :
Low Frequency Split Phase Solar Inverter
feature :
Low Frequency
type :
Off Grid Solar Inverter
power :
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Place of Origin :
China
Brand Name :
MITSCN
Certification :
ISO
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Solar Panel Carton box by pallet or ply wooden box
Delivery Time :
5-8 working days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Month
Description

Low Frequency Split Phase Solar Inverter

• Pure sine wave output
• Friendly user interface;MFD (multi-function display)
• 3 Steps charging
• Overload and short-circuit protection
• Set charging voltage/charging current.
• Battery low voltage shutdown point can be set to 10/10.5/11V
• Set utility priority/ Battery priority
• Set utility input wide/narrow range
• Inverter voltage can be set to 100/110/120;frequency can be set to 50/60Hz • Set utility charging on/off switch
• Built-in 80A MPPT charger

MODEL PC33- 1012 TLV PC33- 1512 TLV PC33- 1524 TLV PC33- 2012 TLV PC33- 2024 TLV PC33- 3024 TLV PC33- 3048 TLV PC33- 4024 TLV PC33- 4048 TLV PC33- 5048 TLV PC33- 6048 TLV
Inverter Output Rated power 1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Power factor 1
Wave form Pure sine wave
Output voltage RMS 100V / 110V / 120VAC (200V / 220V / 240VAC, L+L) ±10%
Output frequency 50Hz or 60Hz (±0.3Hz)
Inverter efficiency (peak) >85%
Line mode efficiency >95%
Overload 100%<Load<110% (alarm 5min then stop output ) / 110%<Load<125% (alarm 60s then stop output) / Load > 125% (alarm 10s then stop output )
Surge rating 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA
Capable of starting electric motor 1HP 1HP 1.5HP 1.5HP 2HP 3HP
Battery Battery voltage 12VDC/24VDC 24VDC/48VDC 48VDC
Minimum start voltage (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Low battery voltage cut off 10V / 10.5V / 11V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Low battery voltage alarm (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
High battery voltage alarm (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
High Battery Voltage Recover (13.8-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Save mode Load ≤50±20W(120V)/100±20W(220V)
AC Input Mode Input waveform Pure sine wave
Nominal input voltage 200Vac / 220Vac / 240Vac
Max input voltage 270Vac MAX
Input frequency 50Hz / 60Hz (auto sensing)
Efficiency (AC mode) >95% (load, full battery)
Transfer time AC to DC 15ms(typical)
Solar Charger Maximum PV Array Power 1250W 1250W 2500W 1250W 2500W 2500W 5000W 2500W 5000W 5000W 5000W
Maximum PV Charge Current 80A
DC Voltage 12V / 24V 24V / 48V 24V / 48V
MPPT Range @ Operating Voltage 16~95VDC @ 12V / 30~130VDC @ 24V 30~130VDC @ 24V /
60~130VDC @48V		 60~130VDC @48V
Maximum PV Array Open Circuit Voltage 100±2Vdc / 145±2Vdc 145±2Vdc 145±2Vdc
Maximum Efficiency >98%
Standby Power Consumption <2W
Charge Mode 12V 30A 45A 60A / / / /
24V 20A 25A 30A 40A 60A / /
48V / / / 20A 30A 35A 40A
Min charge current 10A. Change by every 5A
Dimensions Dimensions (W*H*D) 277*196*466mm 277*186*621mm
Ship Dimensions (W*H*D) 376*306*592mm 376*296*747mm
Net Weight (Solar CHG)(kg) 17.2 17.7 21.8 20.7 25.2 25.5 38.9 36.5 38 39
Shipping Weight (Solar CHG)(kg) 20 20.7 24.8 23.5 28.2 28.2 43 40.7 39.2 40.2
Warranty 1year
