MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm
MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm
Specifications
Brand Name :
Mitscn
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiatble
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
20days
Packaging Details :
carton,wooden case,pallet,full container
Power :
300w
Solar cell :
Mono (210mm)
Solar cell number :
126cells (9*14)
Dimension :
2000*850*2.5mm
Voltage at Pmax（Vmp） :
72.00V
Current at Pmax（Imp） :
4.10A
Description
Mono 210 MITSCN-30072-210,210 Mono Flexible Solar Panel
Optional Surface Material

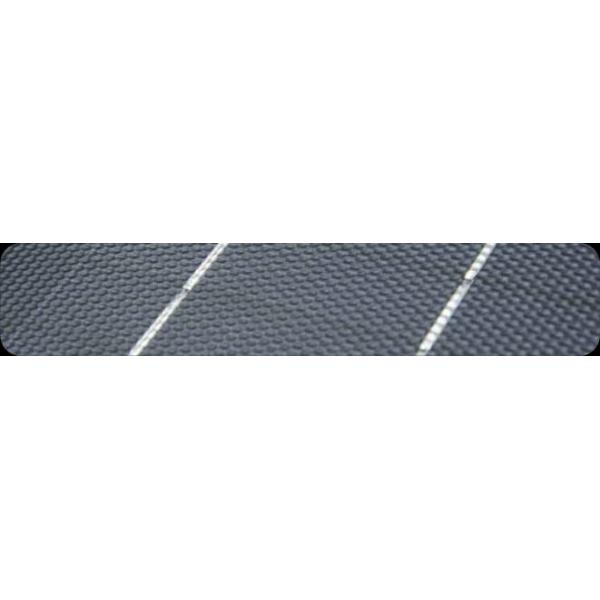

*Surface ETFE
MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm

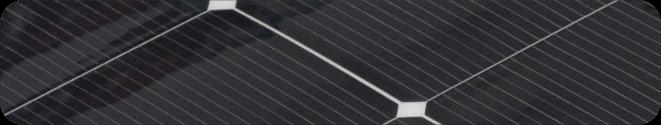

*Surface Frosted PET
MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm

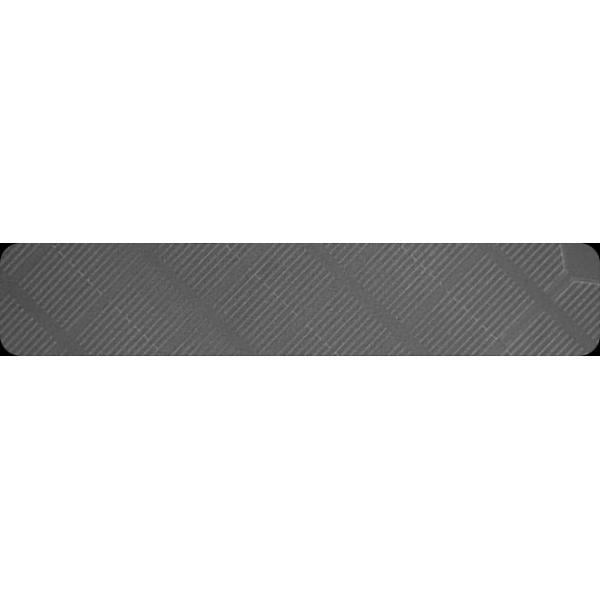

*Surface Clear PET
MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm
Liectrical Parameters at(STC)
Power(W) 300W
Module Efficiency(%) 17.64%
Voltage at Pmax(Vmp) 72.00V
Current at Pmax(Imp) 4.10A
Open Circuit Voltage(Voc) 86.00V
Short Circuit Current(lsc) 4.65A
Power Tolerance(W) ±3%

Mechanical Parameters
Solar Cell(Type/Size) Mono(210mm)
Solar Cells Number 126Pcs(9*14)
Dimension 2000*850*2.5mm
Weight 2KG
Cable 4mm2/300mm
Connector Original MC4/Compatible MC4
Waterproof junction box IP65/IP67

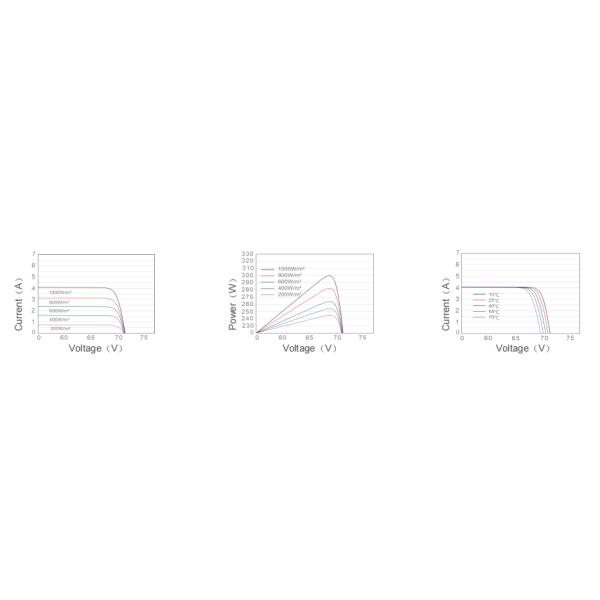

Characteristics
MITSCN-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm
