Specifications
Brand Name :
Good Future Solar
Model Number :
MG/ZG/YG/JG.ETC
Certification :
CE/ISO/BV/SGS.etc
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000MW per Month
Delivery Time :
30 Working Days after design confirm
Packaging Details :
Neutral packing
Product :
0.08 Kwh/d Automatic Sun Tracking System For Solar Panels One Axis Solar System
Driving System :
Slew drive
Tracking Range :
±60 degree
String-Powered :
Yes
Night Position :
Yes
Tracking Accuracy :
≤ 1°
Operation Temperature :
-40℃ - 70℃
Module Supported :
All commercially available modules
System Voltage :
1000V/1500V
Description

0.08 Kwh/d Automatic Sun Tracking System For Solar Panels One Axis Solar System

Popular solar trackers in the market has 3 types:passive, active and open loop trackers which is distinguished from drive and sensing or positioning system that they incorporate.
Passive trackers: The tracker has a gas sensing device and the tracker will move across the sky by using suns radiation to heat gases.

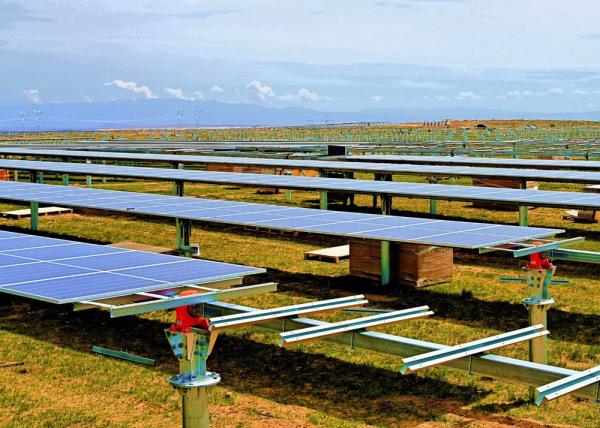

Active trackers: The tracker has an electric or hydraulic drives and some type of gearing or actuator. Good future 1P single row solar panels tracker belongs to this type of active trackers. It’s also the most popular type in the market right now.
Open loop trackers: Use no sensing but instead determines the position of the sun through pre-record data for a particular site.

Technical Parameters of single axis solar tracker

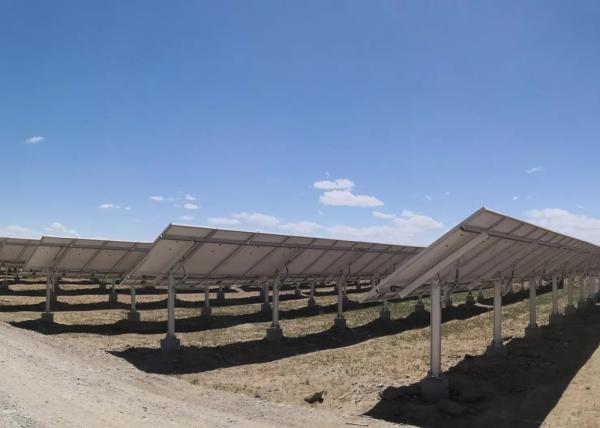

Array Single Axis Solar Tracking System
Tracking Range 士 60°
Driving System Slew drive, 28VDC motor
Modules per Tracker Max.90 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Power Consumption 0.2-0.5kWh/day
Power Supply Mode Powered by PV strings, back-up lithium battery
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 70℃
Control Algorithm Astronomical algorithms + Tilt sensor close loop
Tracking Accuracy ≤ 1°
String-Powered Yes
Backtracking Yes
Communication Options LoRa wireless /RS 485 cable
Night Position Yes

0.08 Kwh/d Automatic Sun Tracking System For Solar Panels One Axis Solar System0.08 Kwh/d Automatic Sun Tracking System For Solar Panels One Axis Solar System0.08 Kwh/d Automatic Sun Tracking System For Solar Panels One Axis Solar System0.08 Kwh/d Automatic Sun Tracking System For Solar Panels One Axis Solar System
