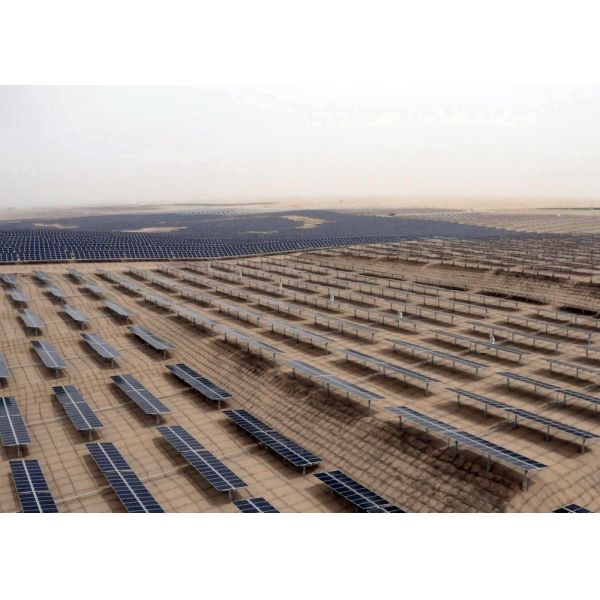

Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Specifications
Brand Name :
Good Future Solar
Model Number :
MG/ZG solar tracking system
Certification :
CE/ISO/BV/SGS or designated
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000MW per Month
Delivery Time :
30 Working Days after design confirm
Packaging Details :
Neutral packing
Product :
Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Driving System :
Slew drive for tracking system
Operation Temperature :
-40℃ - 70℃
Damper :
Included
Material :
Galvanized Steel
Model :
1p or 2p
Control Algorithm :
Astronomical algorithms + Tilt sensor
Module Supported :
All commercially available modules
Description

Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket

Working principle:
Ground mounting single axis solar tracking system components slew drive solar panel mounting brackets is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 15%-20% (depending on local conditions).

Functions:

The structure is simple, the parts are highly pre assembled, and the construction time is saved.
Weight-lifting structure with 5 supporting points, shaped table design combined with a four-link age structure,driven by slewing drive.
Adapt to outdoor environment,working temperature -40~80C°.
Hot-dipped zinc galvanization will extend the work life of the brackets
Independent driving single row design, no linkage rod, strong terrain adaptability and high plot ratio.
Automatic control: The solar tracking system will provide protection automatically for different weather (rain, snow, high winds, etc. )

Technical Parameters of single axis solar tracking system

Ground Solar Power Energy Mounting System Solar Panel PV Tracker Support Bracket
Tracking Range 士 60°
Driving System Slew drive, 28VDC motor
Modules per Tracker Max.90 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Power Consumption 0.2-0.5kWh/day
Power Supply Mode Powered by PV strings, back-up lithium battery
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 70℃
Control Algorithm Astronomical algorithms + Tilt sensor close loop
Tracking Accuracy ≤ 1°
String-Powered Yes
Backtracking Yes
Communication Options LoRa wireless /RS 485 cable
Night Position Yes
