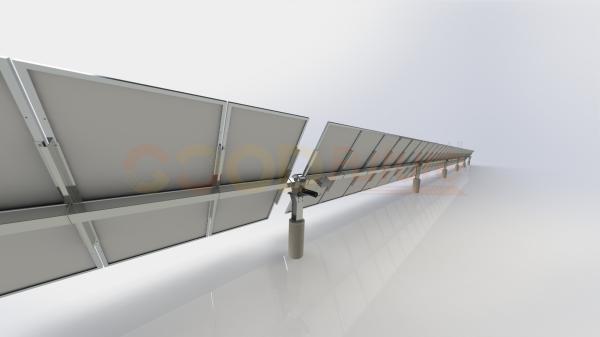

1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow
Specifications
Brand Name :
HWL
Model Number :
Single Axis Solar Tracker
Certification :
SGS/ISO/CE/BV.ETC
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000MW per Month
Delivery Time :
30 Working Days after design confirm
Packaging Details :
Neutral packing
Name :
solar panel mounting bracket follow sun solar tracking system
Wind Load :
18m/s
GPS :
Timing
Driving System :
Slew drive, 24VDC motor
Power consumption: :
≤0.5kwh/day
System Voltage :
1000/1500 V
Description

solar panel mounting bracket follow sun solar tracking system

Product Introduction

The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun,
combined with high-performance microcontroller (DSP core), making the system accurate
and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time
closed-loop feedback tracking angle, automatic tracking, without human intervention.

1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow

Functions:

1.Intelligent feedback

The controller adopts the inclination sensor of the international brand. Real-time closed-loop feedback tracks the tracking angle of the bracket, fully automatic tracking, without manual intervention.

2. Night reset function

At night, the components are restored to the initial maximum wind resistance state, and the errors caused by the day's operation are eliminated to ensure the accuracy of the entire tracking system;

3. Backtracking function

Reduces shading and maximizes power generation;

4.Information collection function

Real-time acquisition of component tilt Angle; Real-time acquisition of weather conditions, coordinate position, altitude, time and other information;

1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow

Technical Parameters of Slew Drive Horizontal Single Axis Solar Tracker

Technical parameters
Product solar panel mounting bracket follow sun solar tracking system
Tracking Range 士 60°
Driving System Slew drive, 28VDC motor
Modules per Tracker Max.90 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Structure Material Hot dip galvanized steel
Power Consumption 0.2-0.5kWh/day
Power Supply Mode Powered by PV strings, back-up lithium battery
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 70℃
Control Algorithm Astronomical algorithms + Tilt sensor close loop
Backtracking Yes
Communication Options LoRa wireless /RS 485 cable
Night Position Yes

1 Axis Sun Solar Tracking System Solar Panel Mounting Bracket Follow

About Good Future Solar:

Good Future Solar is a high-tech company in the clean energy industry, registered in China, address: Zhengzhou East New District, Henan Province, China. Our company is committed to provide the solar products of high reliability with competitive price to our domestic and foreign customers. Strive to build our brand in terms of leading technology, high quality and efficient service.
