IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
Specifications
Brand Name :
OEM
Model Number :
SN-P300W
Place of Origin :
Guangdong, China
Packaging Details :
1000w solar panel packing in carton box, and bulk order with pallet
Supply Ability :
3000000 Watt/Watts per Month 1000w solar panel
Cell size :
158.75mmx158.75mm
Type :
PERC, Half Cell, Bifacial, Double-glass, All Black, Customized Solar Panel
Panel Dimensions :
1950*990*40MM
Panel Efficiency :
20%
Warranty :
10YEARS
Junction Box :
IP65 Waterproof
Connector :
solar connector
Certificate :
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Front Glass :
High Transparency Glass
Front Cover :
3.2mm High Transimissiion
Frame :
Anodized Aluminium Alloy
Frame Color :
Silvery Black
Application :
Solar Power System
Efficiency :
15-18% High Efficiency Solar Panel
Port :
Shenzhen or others as request
Description

Product description
300-355Watt Polycrystalline Solar Panel
Characteristics SN-P300 SN-P330 SN-P335 SN-P340 SN-P350 SN-P355
Maximum Power(Pmax) 300Wp 330Wp 335Wp 340Wp 350Wp 335Wp
Optimum Operating Voltage/Vmp 30.0V 36.6V 36.9V 38.2V 38.5V 38.7V
Optimum Operating Current/Imp 8.33A 8.78A 8.84A 8.9A 9.09A 9.17A
Open Circuit Voltage /Voc 43.2V 46.1V 46.5V 46.7V 46.9V 47.0V
Short Circuit Current /Isc 9.13A 9.28A 9.36A 9.45A 9.60A 9.69A
Module Efficiency 15.54% 15.30% 15.60% 15.90% 16.20% 16.50%
Weight 19Kg 19Kg 19Kg 19Kg 19Kg 22Kg
Numbers of cells 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1650*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

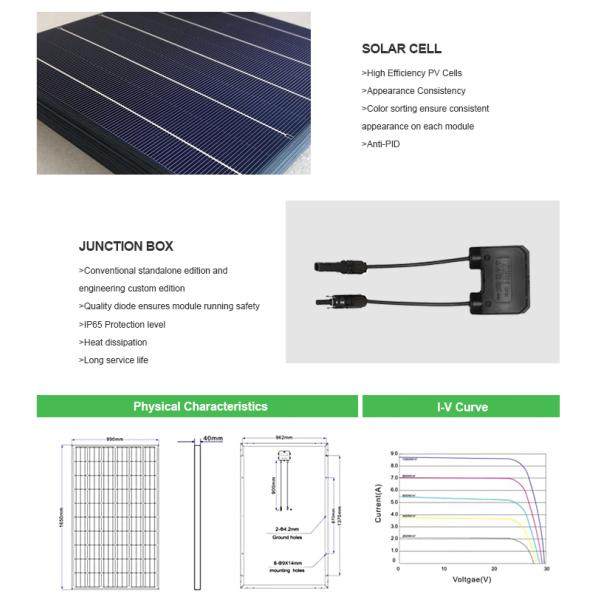

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed CaravanIP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed CaravanIP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed CaravanIP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed CaravanIP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan
