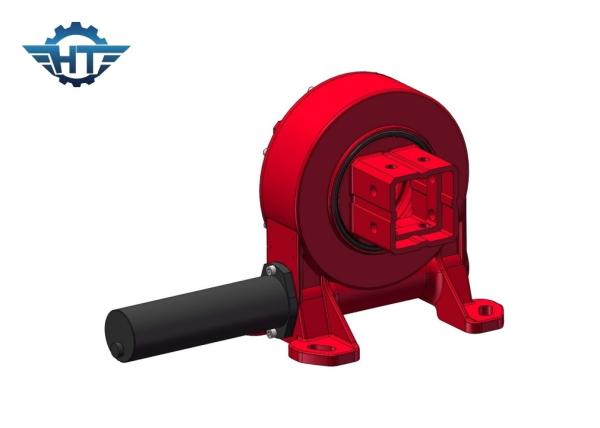

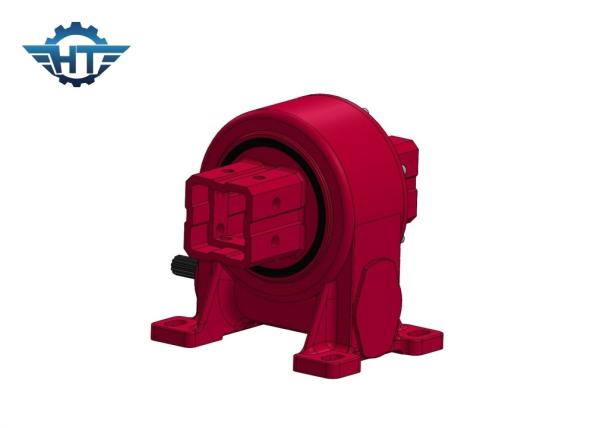

7'' Self Locking Solar Slewing Drive With Axial Load Up To 34kn For Csp Concentrated Solar Tracking System
7'' Self Locking Solar Slewing Drive With Axial Load Up To 34kn For Csp Concentrated Solar Tracking System
7'' Self Locking Solar Slewing Drive With Axial Load Up To 34kn For Csp Concentrated Solar Tracking System
7'' Self Locking Solar Slewing Drive With Axial Load Up To 34kn For Csp Concentrated Solar Tracking System
Specifications
Brand Name :
HANGTUO
Model Number :
VE7"
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 PC
Price :
145~226 USD/PC
Supply Ability :
12000 PCS/YEAR
Delivery Time :
15~30 DAYS
Packaging Details :
PLYWOOD BOX
Application :
CSP Concentrated Solar Trackers
Size :
5 inches
Feature :
Long Life and self locking
Accuracy :
0.15°
Installation :
Horizontal/Vertical
Protection Level :
IP66
Voltage :
24V/48V/110V/220V/380V
Warranty :
5~10 Years
Description

7'' Self-Locking Solar Slewing Drive with Axial Load up to 34kN for CSP Concentrated Solar Tracking System

Self-locking Solar Slewing Drive Description

The slewing bearing is mainly composed of ferrules, rolling elements, cages, sealing rings, etc. Since different parts have special functions in practical applications, there are different considerations in the design and selection of materials. Slew drives are essential components in various applications that require controlled rotational movement and precise positioning. They offer a reliable and efficient solution for achieving smooth and continuous rotation in a wide range of industrial and mechanical systems.

Vertical Solar Tracking Slew Drive Performance Parameters

Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg

Applications

Satellite Dish Antennas: Slewing drives are utilized in satellite dish antennas to enable precise tracking and positioning of the dish. They allow the antenna to adjust its orientation to maintain a constant connection with the satellite, ensuring reliable communication.

Offshore and Marine Applications: Slewing drives are commonly employed in offshore and marine equipment, including cranes, davits, and winches. They facilitate the rotation and lifting of heavy loads in harsh marine environments, such as offshore oil rigs, ships, and port operations.

Renewable Energy Applications: In addition to solar tracking systems and wind turbines, slewing drives find use in other renewable energy applications. For instance, they are utilized in tidal energy systems to control the orientation of tidal turbines and optimize energy capture from tidal currents.

Product tags

slewing drive for solar tracking system

,

solar slew drive

,

slew drive for solar tracker
