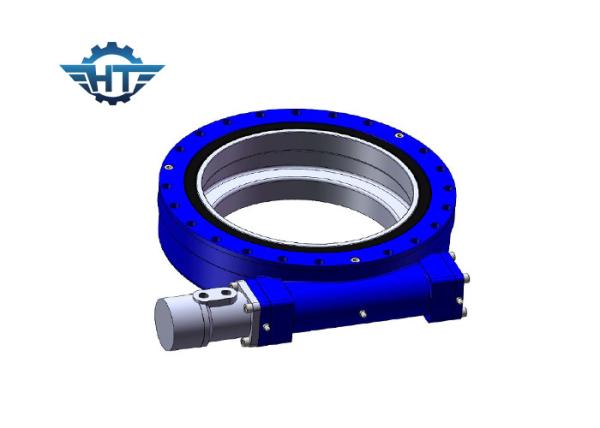

SE12 Enclosed Housing IP66 Hydraulic Slew Drive With Hourglass Worm Shaft For Marine Cranes
SE12 Enclosed Housing IP66 Hydraulic Slew Drive With Hourglass Worm Shaft For Marine Cranes
Specifications
Brand Name :
HangTuo
Model Number :
SE12
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Gear ratio :
102:1
Type :
Enclosed
Application :
construction machinery
OEM service :
available
Driver :
hydraulic motor
IP grade :
IP66, IP65
Color :
as requested
Accuracy :
less than 0.01 degree
Description

Description

Slewing drives are powered with hourglass worm technology for maximum gear torque and the smoothest rotation. Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities.

SE Performance Data

Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182

Features

The standard slew drives are fitted with an open housing and single self-locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.
