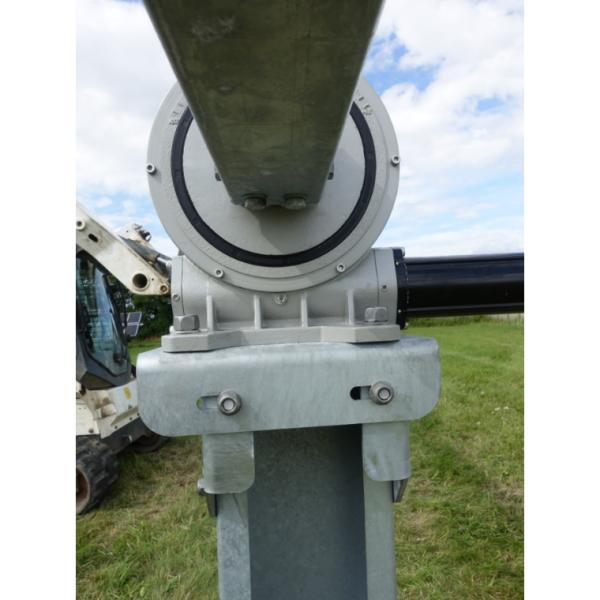

Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking
Specifications
Brand Name :
HangTuo
Model Number :
VE 9
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
9 inch
Gear ratio :
61:1
Efficiency :
40%
Driver :
Electric Motor/hydraulic Motor/servo Motor
Type :
vertical mounted
Application :
solar tracking system
Precison :
High
OEM service :
available
Description

VE9 Slew Drive Gearbox For Oblique Or Tilted Horizontal Single Axis Solar Tracking System

Product Description

Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.

Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 37:1 Efficiency 40%

Applications

solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.

Technical Table of VE Slewing Drive

Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Vertical Mounted VE9 Slew Drive Gearbox Servo Motor For Horizontal Solar Tracking

Q&A

1. How to choose?

Please specify the diameter size, width, voltage, power and no-load speed of the required motors, the square meters of the solar panels/mirrors, the arrangement of those solar panels/mirrors.

2. Could I take samples to test quality and market in advance?

Sure, welcome to take samples to test our quality and service.

3. What's the total cost for samples?

Total sample cost= sample cost + freight.

We will give you the best shipping cost after you choose the suitable slewing drives.

4. How do you ship samples?

Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

5. What's your minimum order quantity?

1 set

6. What's your delivery time?

For standard samples: 0~15 days; for batch orders: within 25~40 days.
