SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers
SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers
SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers
SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers
Specifications
Brand Name :
HangTuo
Model Number :
SE14"
Certification :
CE, ISO9001
Place of Origin :
Changzhou, China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
SE14
Gear ratio :
85:1
Efficiency :
40%
Color :
RAL 9006 or as requested
Application :
Solar Tracker
Driver :
Motor
Warranty :
5~10 Years
Certificate :
ISO9001, CE
Installation Site :
Open Field
Feature :
Long Life
Maintenance :
5 Years
Description

SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers

Description

Structural characteristics

Slewing worm drive is consisting of worm gear, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the worm and envelop worm and gear are engaged to increase the torque, stable and reliable.

Performance

Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotate at azimuth and elevation driven by slewing drive.

Application scope

Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.

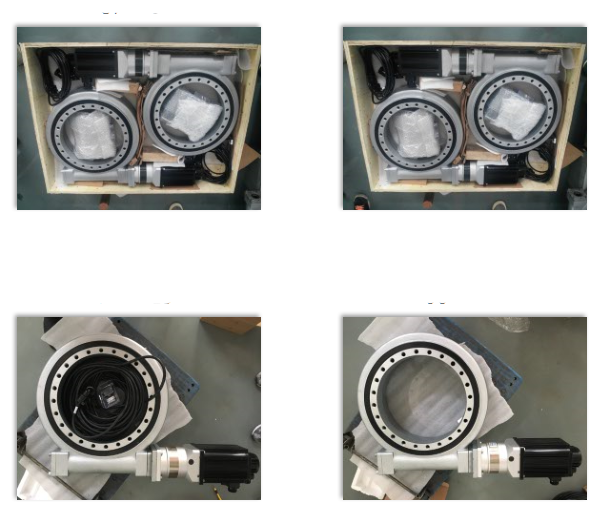

SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers

Performance Table of SE14

Model horizontal 14 inch worm drive
Ratio 85:1
IP Grade IP66
Rated Output Torque 44 kNm
Tilting Torque 135 kNm
Axial Load 680 kN
Radial Load 230 kN
Holding Torque 68 kNm
Efficiency 40%
Precision ≤0.1 °
Self-locking Yes
Weight 62 kg
Working Temperature -30～+120 ℃

Technical Data of SE Slewing Drives

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204

Our Services


There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17", 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
