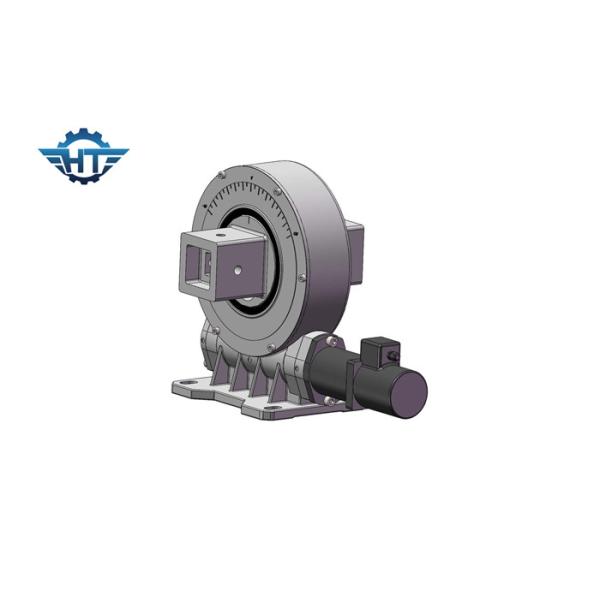

VE9 Single Axis Solar Slewing Ring Drive with Square Tube For Flat Single Tracking system
VE9 Single Axis Solar Slewing Ring Drive with Square Tube For Flat Single Tracking system
VE9 Single Axis Solar Slewing Ring Drive with Square Tube For Flat Single Tracking system
VE9 Single Axis Solar Slewing Ring Drive with Square Tube For Flat Single Tracking system
Specifications
Brand Name :
HangTuo
Model Number :
VE9
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~380/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
50Mn, 42CrMo
Model :
VE9
Gear ratio :
61:1
Rated Output Torque :
6100 Nm
Holding Torque :
36000 Nm
Tilting Torque :
16300 Nm
Efficiency :
40%
Standard Color :
RAL 9006
Description

​VE9 Single Axis Solar Slewing Ring Drive With Square Tube For Flat Single Tracking System

Description

Single-axis slewing drives rotate around one axis. These products are the standard in slewing drives, the easiest to install, and the most commonly used. The VE offers vertical mounting and a fully-enclosed drive in one high-powered unit.

Advantages

1. High backholding torque

2. Self-locking to improve the solar tracking system's safety

2. Hard stop inside

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load and minimize backlash

Technical Data of VE Slewing Drives

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.

Applicatons

Slewing drive bearings are usually found in application such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
