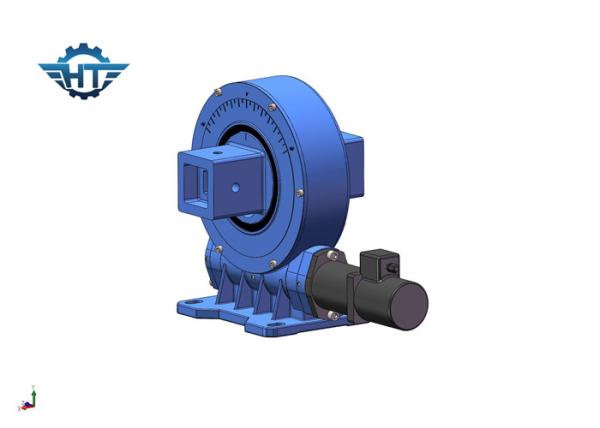

VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
Specifications
Brand Name :
HangTuo
Model Number :
VE9
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~380/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Type :
Enclosed
Application :
Construction Machinery
Driver :
Hydraulic Motor
IP grade :
IP66
Color :
As Requested
Effciency :
40%
Model :
VE9
Ratio :
61:1
Description

VE9 110*110mm Tube Slew Drive Gearbox With Enclosed Housing For Solar Tracking System​

Product Description

Slewing drive may be small, but they help do some of the largest jobs in various applications. From swing arm rotation on solar trackinng system to cranes, wind turbine, slewing drives are an integral part of many machinated processes.

Especially, the vertical designing is the biggest bright spot of Hangtuo slewing drives ,the vertical designing is mainly used for the solar tracker system , the special structure simplifies the complex structure of the single axis solar tracking system bracket, reducing the cost of whole system, the vertical designing is playing a more competitive role in the solar tracker market.

Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 2250 N.m
Tilting Moment Torque 16 K N.m Holding Torque 30. K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%

Applications


The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications

Parameters of VE Series

Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251
