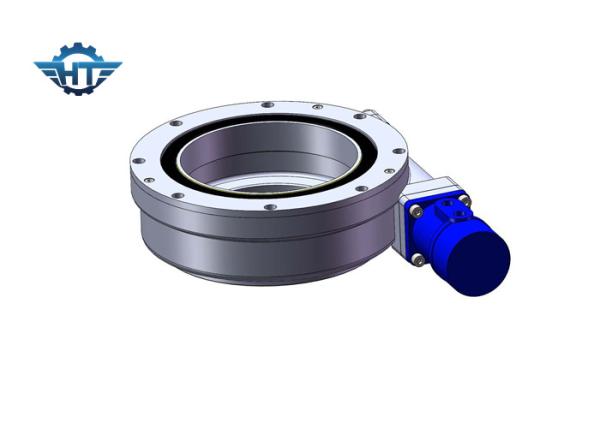

SE9 Hydraulic Motor Drived Slewing Ring Bearing For Tunneling Equipment
SE9 Hydraulic Motor Drived Slewing Ring Bearing For Tunneling Equipment
SE9 Hydraulic Motor Drived Slewing Ring Bearing For Tunneling Equipment
SE9 Hydraulic Motor Drived Slewing Ring Bearing For Tunneling Equipment
Specifications
Brand Name :
HangTuo
Model Number :
SE9
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 100~1600/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Gear ratio :
61:1
Type :
Enclosed
Application :
Solar Energy
Driver :
DC/AC
IP grade :
IP66
Color :
As Requested
Effciency :
40%
Backlash :
0.1 degree
Description

SE9 Hydraulic Motor Drived Slewing Ring Bearing With IP66 Housing For Tunneling Equipment

Description

Our slewing drive, also called slewing ring bearing models have different moment load capacities catering the needs of various applications. They are powered with hourglass worm technology for maximum torque and the smoothest rotation.

Features

1. safely hold radial and axial loads

2. transmit a torque for rotating at the same time

3. with worm gear, can magnify an torque in slower speed

4. space saving, compact with high power density

5. enclosed housing provides protection from environmental factors

6. self-contained allow for simple integration to any system

7. customized solutions such as coatings, seals, greases etc are available

Parameters of SE9 Slewing Drive With Hydraulic Motor

SE9 Slewing Drive Performance Data
Rated Output Speed 1.97RPM
Normal Output Torque 4880 N.m
Max Output Torque(3sec.) 6100 N.m
Tilting Moment Torque (MAX) 49900 N.m
Holding Torque (MAX.) 30800 N.m
Axial Rating (MAX) 340kN
Radial Rating (MAX.) 130 kN
Slewing Drive Ratio 61:1
Tracking Precision ＜0.1
IP(Class) 66
Eficiency 40%
Temperature -40℃ ~ +120℃
Hydraulic Motor Perfomance Data
Displacement 125cm/rev
Flow 18L /min
Pressure 12.5Mpa
Output Speed 120 r/min
Normal Output Torque 200 N.m
Max Output Torque 250N.m

Applications

Typical slewing drive applications include solar industry, truck cranes, man lifts, utility equipment, hydraulic attachments, tunneling equipment, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts. In high presion needed occasions like CPV, CSP, satellite antenna, dish etc.
