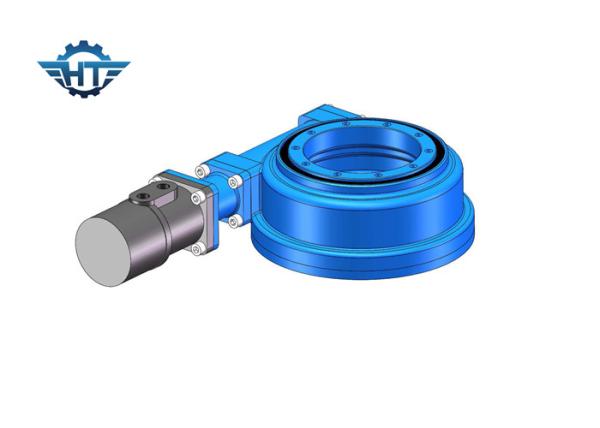

SE17 Self-locking Hydraulic Slewing Ring Bearing For Horizontal Single Axis Linkage System
Description
Our custom slewing ring bearing solutions for the solar industry help harness the sun’s power in an efficient and cost-effective manner. Our slewing drives and worm gear drives deliver the highest dynamic and static torque load capacity in a small package. It is designed to help the rotation of the sun tracking system, and improves power generation efficiency.
Features
1. SE self-locking enclosed slewing drive help power movement across industries and are perfect for situations requiring both load-holding and rotational torque from the same gearbox.
2. IP66 grade housing to protect from harsh field environment
3. Rotate 360 degrees which can meet various applications
4. Small backlash
5. Envelop worm
Performance Parameters of SE Series
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Applications
For solar: Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker
For wind: it is uesd to rotate the pedestal in wind turbines
Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, Dock Crane, Timber Grab
Industry Market: Automation/Assembly line, robotic arm
Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
