IP66 VE6 Enclosed Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Parabolic CSP
IP66 VE6 Enclosed Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Parabolic CSP
IP66 VE6 Enclosed Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Parabolic CSP
IP66 VE6 Enclosed Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Parabolic CSP
Specifications
Brand Name :
HANGTUO
Model Number :
VE5
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 PC
Price :
145~226 USD/PC
Supply Ability :
12000 PCS/YEAR
Delivery Time :
15~30 DAYS
Packaging Details :
PLYWOOD BOX
Type :
Slewing Drive
Material :
42CRMN or 50Mn
Application :
Solar Power System
Warranty :
10 Years
Color :
Customer Required
Size :
3 Inch - 25 Inch
Motor :
24V
Feature :
Long Life
Description

IP66 VE6 Enclosed Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Parabolic

Description

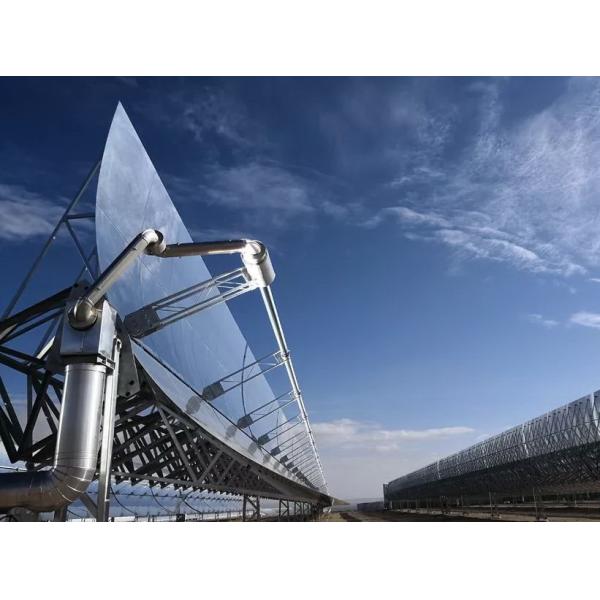

Slew drives with high accuracy are designed in concentrated solar power (CSP) stations like heliostat, parabolic, fresnel and concentrated photovoltaic (CPV) stations. The vertical slew drive can achieve rotate in one direction and improve power generation efficiency. They can be also applied in PV tracker-single axis & dual axis solar tracking solutions etc.

Features

1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease had been filled before factory

4. Simple installation

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High backholding torque, suitable for vertical installation

9. Low maintenance

IP66 VE6 Enclosed Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Parabolic CSP

Vertical Slew Drive Performance Parameters

Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg

Packaging and Shipping

Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

Outer Packaging: hard carton; wooden case ; wood pallet.

Shipping Term: by express; by air; by land; by sea.

Since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea, the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.

If in bulk order in the future, we recommend ship by sea, or sometimes by railway. The railway is quickier than by sea.

Note:

Express: door to door, just need to pay the import tax if required by the custom.

By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.

By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
