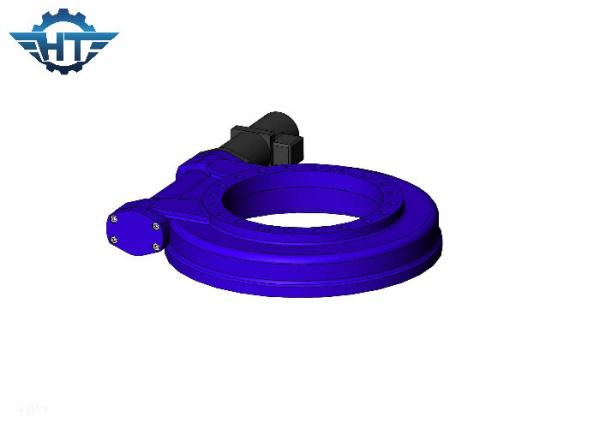

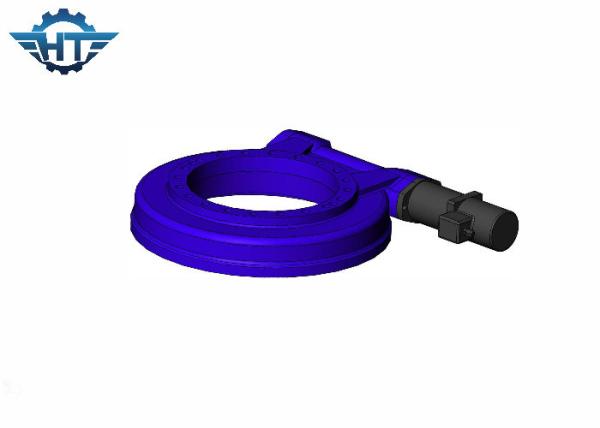

SE12 Slew Drive, IP66 Enclosed Housing With AC Motor For Truck Crane And Construction Machinery
SE12 Slew Drive, IP66 Enclosed Housing With AC Motor For Truck Crane And Construction Machinery
SE12 Slew Drive, IP66 Enclosed Housing With AC Motor For Truck Crane And Construction Machinery
SE12 Slew Drive, IP66 Enclosed Housing With AC Motor For Truck Crane And Construction Machinery
Specifications
Brand Name :
HangTuo
Model Number :
SE12
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 100~1600/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
50Mn, 42CrMo
Self-lock :
Yes
Tilting Torque :
54.4 kNm
Holding Torque :
40.5 kNm
Application :
Cranes
Installation Site :
Construction Machinery
Packaging :
Plywood
Motor :
AC Motor
Description

SE12 Slew Drive, IP66 Enclosed Housing With AC Motor For Truck Crane And Construction Machinery

Description

We offer quality enclosed slewing drive specially designed for aerial working platform and construction machinery. Our enclosed slewing drive equipment is also widely used in PV, CPV, STP, CSP solar tracking systems applications.

SE12 Slew Drive, IP66 Enclosed Housing With AC Motor For Truck Crane And Construction Machinery

Good Quality & Testings

We adopt trict product quality testing process.

We are conducting overall quality control from raw material to the finished product, each process will be inspected by special-occupied inspectors with detection equipments testing method.

We can do slewing drive working life testing, the slewing drive rotating on the test tooling with customer’s axial load, radial load & tilting moment. Bearings, gears, bolts, and assemblies are evaluated on several factors that can impact performance, including strength and integrity, load and speed, torque and vibration, metallurgic and dimensional characteristics, and environmental impacts. Other testings can be conducted according to customers' needs, to ensure that custom specifications are met, and analyze failure and wear.

The life cycle test confirms that any changes to components, materials, or manufacturing process won't negatively impact the bearing and worm's characteristics. slewing drive's working life test are not just theoretical computations, they must be proven in exhaustive testing.

Parameters of SE Series

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204
