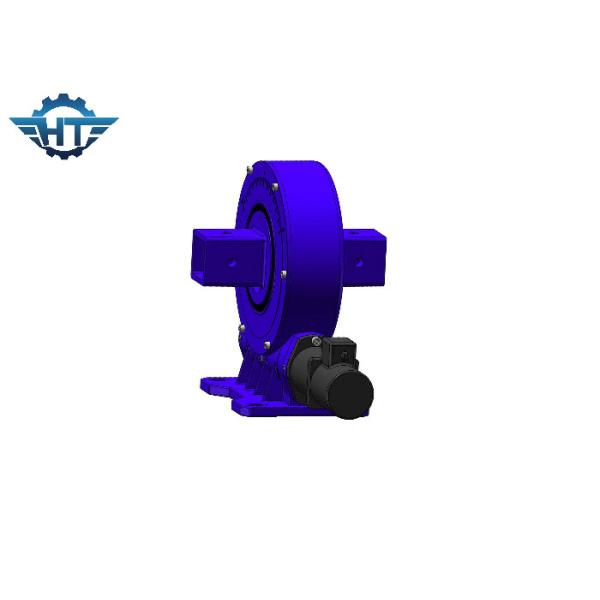

Solar Slewdrive Gearbox For Solar Tracking System For Harsh Environment
Solar Slewdrive Gearbox For Solar Tracking System For Harsh Environment
Solar Slewdrive Gearbox For Solar Tracking System For Harsh Environment
Solar Slewdrive Gearbox For Solar Tracking System For Harsh Environment
Specifications
Brand Name :
HANGTUO
Model Number :
VE5
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 PC
Price :
100~400 USD/PC
Supply Ability :
12000 PCS/YEAR
Delivery Time :
15~30 DAYS
Packaging Details :
PLYWOOD BOX
Type :
Slewing Drive
Material :
42CRMN or 50Mn
Application :
Solar Power System
Warranty :
10 Years
Color :
Customer Required
Size :
3 Inch - 25 Inch
Motor :
24V
Feature :
Long Life
Description

Solar Small Slewing Drive Gearbox For Solar Tracking System Suitable For Harsh Environment

Description

Our company can supply all kinds slew drives and slewing bearings used in solar tracking system, pallet transporter, truck, movable gantry crane, straddle carrier, harbour mobile crane, sewage treatment, and so on.

Features

  • High tilting torque, suitable for horizontal installation
  • Grease had been filled before factory
  • Rotation 360 degrees
  • Connection of a driving motor from the left or right side
  • During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
  • Simple installation and low maintenance
  • Rational space utilization
  • The gear is self-locking; therefore a brake is not necessary
  • Easy and fluent method of starting and stopping

Solar Slewdrive Gearbox For Solar Tracking System For Harsh Environment

Vertical Slew Drive Performance Parameters

Model Ratio

Rated Output Torque

(N.m)

Tilting Torque

(N.m)

Holding Torque

(N.m)

Axial Load

(kN)

Radial Load

(kN)

 Efficiency

Precision

(°)

 Self-locking

Weight

(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251
