Envelop Worm Worm Gear Slewing Drive For Solar Tracking System With 24V DC Motor
Envelop Worm Worm Gear Slewing Drive For Solar Tracking System With 24V DC Motor
Envelop Worm Worm Gear Slewing Drive For Solar Tracking System With 24V DC Motor
Envelop Worm Worm Gear Slewing Drive For Solar Tracking System With 24V DC Motor
Specifications
Brand Name :
HangTuo
Model Number :
SDE
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 100~1600/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
Dual Axis
Inspect Report :
Yes
Life Span :
30 Years
Warranty :
5 Years
Motor :
24VDC
Structure :
Worm and Gear
Self-lock :
Yes
Color :
As Requested
Description

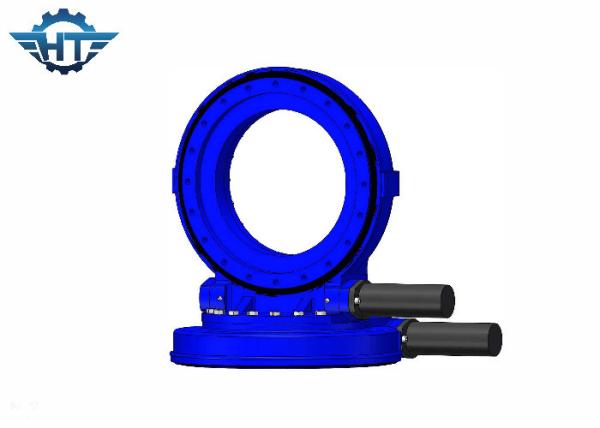

Envelop Worm Dual Axis Worm Gear Slew Drive With 24VDC Motor For Solar Tracking System

Description

The dual axis slew drive applied in dual axis trackers allow for optimum solar energy levels due to their ability to follow the sun vertically and horizontally. No matter where the sun is in the sky, dual axis trackers are able to angle themselves to be in direct contact with the sun.

Dual axis trackers have two degrees of freedom that act as axes of rotation. These axes are typically normal to one another. The axis that is fixed with respect to the ground can be considered a primary axis. The axis that is referenced to the primary axis can be considered a secondary axis. There are several common implementations of dual axis trackers.

They are classified by the orientation of their primary axes with respect to the ground. The orientation of the module with respect to the tracker axis is important when modeling performance. Dual axis trackers typically have modules oriented parallel to the secondary axis of rotation.

Envelop Worm Worm Gear Slewing Drive For Solar Tracking System With 24V DC Motor

Parameters

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705

Main Features


1. Weather proof, plastic powder spray surface treating and new design structure to achieve IP66 protection level
2. Stong torque to withstand wind load, snow load and rainstorm
3. Working Temperature -50°C-80°C

4. Life ≥25years based on our life cycle testing

5. With 24VDC standard motor, 12VDC, 48VDC, or even 220V are optional

Certification and Warranty


1. Certifications CE,ISO9001
2. Warranty Material Part:10 years
3. Electronic Part: 1 year (long warranty can be purchased)
