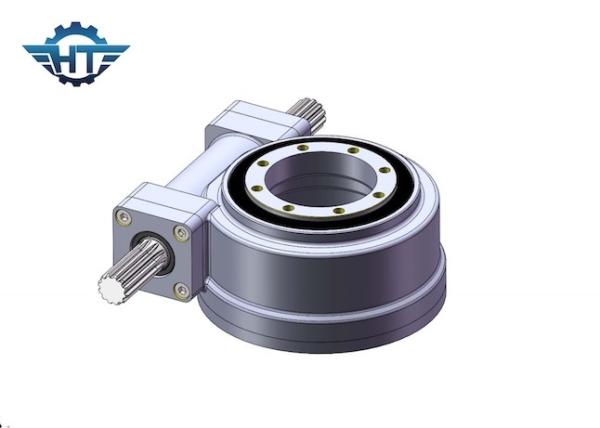

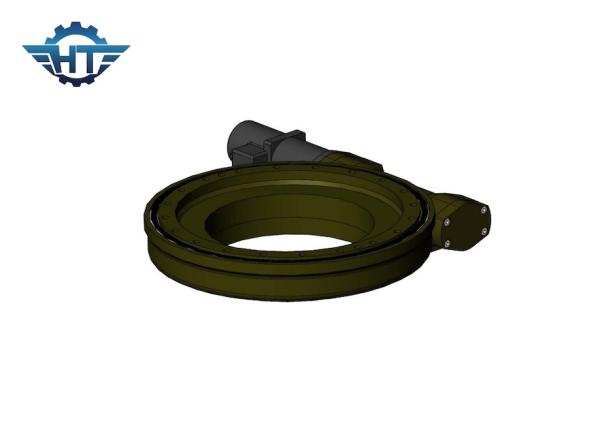

IP66 SE17 Electric Slewing Drive For Offgrid PV Automatic Tracking System
IP66 SE17 Electric Slewing Drive For Offgrid PV Automatic Tracking System
IP66 SE17 Electric Slewing Drive For Offgrid PV Automatic Tracking System
IP66 SE17 Electric Slewing Drive For Offgrid PV Automatic Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
SE17"
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD 100~1600/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
SE17
Material :
QT
Protection :
IP66 Enclosed
Warranty :
5~10 Years
Size :
1 inch to 25 inch
Color :
Customer Required
Tilting Torque :
135600 Nm
Description

IP66 SE17 Electric Slewing Drive For Offgrid PV Automatic Solar Tracking System

Electric Slewing Drive Description

The slewing drive is the main component in the tracking system. In solar photovoltaic power generation, in order to maintain a certain angle between the photovoltaic panel and the sun's rays and absorb the solar radiation to the greatest extent, a rotary drive device is required to adjust the horizontal rotation angle and pitch angle of the photovoltaic panel. The same is true in solar thermal power generation. In order to ensure that the flat mirror can concentrate the sunlight on the heat collector at any time, a rotary drive device is required to adjust the position of the flat mirror.

SE Model Slewing Drive Performance Parameters

Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204

Advantages

Compared with fixed solar trackers, the tracking system:

Generate more electricity than the stationary counterparts due to increased direct exposure to solar lights; there are many different kind of solar tracking systems which can be perfect fit for unique site; the tracking system is more fittable if there is land use limitation; improvement of technology and reliability in electronics and mechanics have drastically reduced long-term maintenance concerns for tracking systems
