Horizontal Worm Gear Slew Drive With Motor 68000 Nm For Solar Tracking System
Horizontal Worm Gear Slew Drive With Motor 68000 Nm For Solar Tracking System
Horizontal Worm Gear Slew Drive With Motor 68000 Nm For Solar Tracking System
Horizontal Worm Gear Slew Drive With Motor 68000 Nm For Solar Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
SE14"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 330~360/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Raw Material :
QT
Holding Torque :
54200 Nm
Tilting Torque :
68000 Nm
Output Torque :
6550 Nm
Static Axial Load :
680 kN
Static Radical Load :
230 kN
Weight :
63 kg
Description

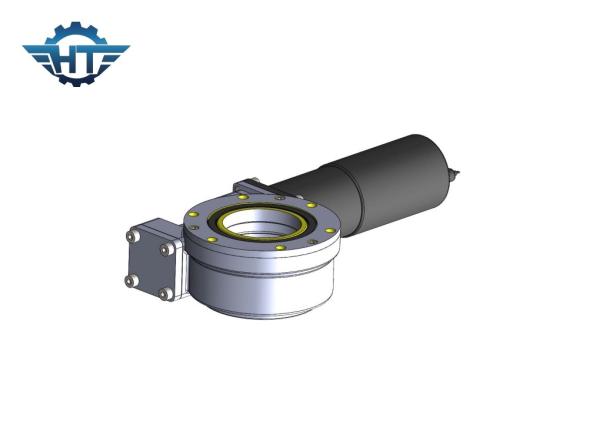

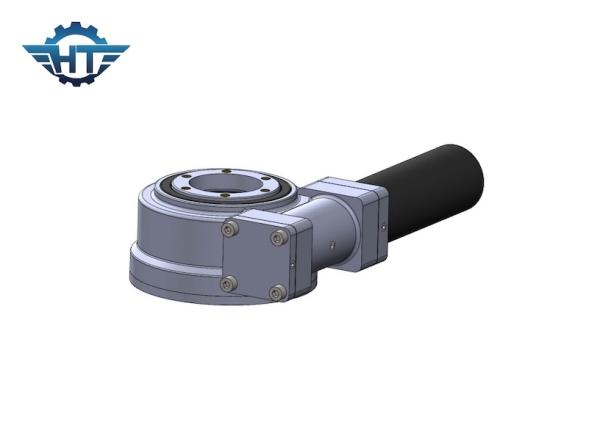

SE Horizontal Slew Drive Worm Gearbox With Gear Motor For Solar Tracking System

Slew Drive Worm Gearbox Description

SE slewing drive utilizes hourglass worm drive technology and adopts a multi-gear contact hourglass worm structure with good impact resistance and is suitable for more precise applications to achieve maximum gear torque and the most stable rotation. A standard swing drive is equipped with an enclosed housing and a single self-locking hourglass worm. When the power input is returned to neutral, the worm will lock the load in place without any external braking. This design makes the SE slewing drive an ideal solution for matching the relative rotation of two objects.

Performace of SE Series

Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204

Transport, Handling & Storage

Transport only in horizontal position, impacts should be avoided.

Wear work gloves and be careful when handling the slew drive.

Use the holes of the rings in the slew drives to fix bolts for safe hoisting, handling and placement.

Store only in a horizontal position and in closed rooms, keep it away from getting wet, the surface corrosion protection of exposed mating surfaces lasts approximately 1 month in closed packaging. Longer period storage requires special protective measures.

Transporting unpacked slew rings

Use suitable lifting gear/ never transport product vertically

Unpacked slew drives can be transported with lifting gear under the following conditions:

  • The lifting gear must be configured appropriately for the unit transport load.
  • The ring bolts must be configured appropriately for the weight of the transport unit.
  • The slew drive shall only be transported by itself.
  • Transport within the company shall only be executed horizontally.
Product tags

solar tracker slew drive

,

slew drive for solar tracker

,

slewing drive for solar tracking system
