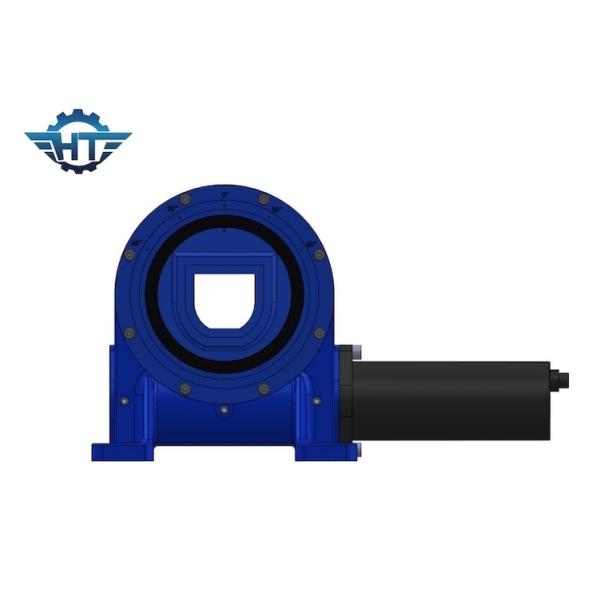

Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
VE7"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 200~300/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
cast iron
Model :
VE7"
Gear Ratio :
57:1
Rated Output Torque :
7320 Nm
Holding Torque :
3.9~5 kNm
Tilting Torque :
8 kNm
Efficiency :
40%
Standard Color :
As Requested
Description

Horizontal Worm Gear Single Axis Slewing Drive For 24V Sun Tracking System

Single Axis Slewing Drive Description

Hangtuo is committed to the research, development and application of high-quality and precise transmission equipment products. Provide reliable mechanical actuator components for flat single-axis and dual-axis photovoltaic tracking, slot, butterfly, and concentrating systems. Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System

The company produces professional slewing drive devices to meet the needs of smooth operation of aerial work vehicles, truck-mounted cranes, wood grabbers, roadheaders, spray equipment, hydraulic module vehicles, automated assembly lines, and wind yaw systems.

Technical Date of Vertical Series

Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg

Our Strength

1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System;
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.

Services


1. OEM service

2. We provide standard products and non-standard products;

3. We provide customized samples, customized drawings, door-to-door mapping and other services;

4. We provide a full range of services, including design, processing, packaging, transportation, etc.


Packaging & Shipping

1. Filling with rust-proof oil

2. Packing with protective layers

3. Fixed in the plywood case, pallet, steel frame
