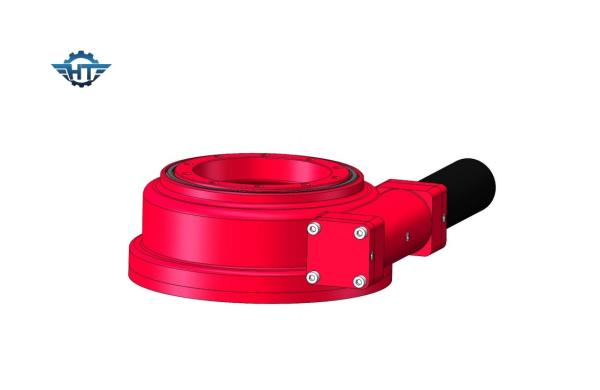

SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
Specifications
Brand Name :
HangTuo
Model Number :
SE5
Certification :
CE, ISO9001
Place of Origin :
Changzhou, China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
SE5
Gear ratio :
51:1
Application :
Worm Gear Transmission
Certificate :
ISO9001 / CE
Feature :
Single Axis
Grease :
Internal 5 Years
Color :
As requested
Backlash :
0.1 degree
Description

SE5 Single Worm Shaft And Worm Gear Slewing Drive With Hydraulic Motor For Industrial Excavator

Excavator Slew Bearing Description

There are all kinds of slewing bearings and slewing drive, standard or non-standard for construction machinery or industrial using such as tower cranes, excavator, mobile crane, crawler crane, stacker reclaimers.

Our compact designed worm gear slewing drives are also specially used for solar tracking systems. We are capable to design and manufacture non-standard slewing bearing and slewing drives independently. Our products are widely used in various application fields, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery and the military etc.

SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator

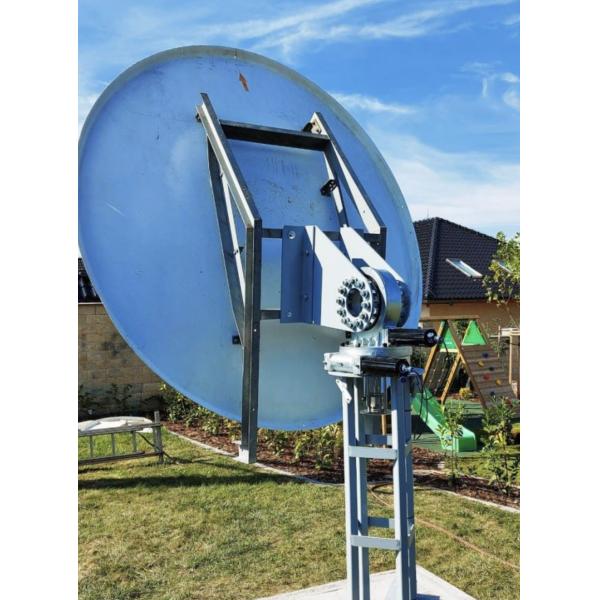

FOR ANTENNA

With over 10 years of experience, our products are widely export to USA, Germany, Japan, Spain, Canada, Italy, France, India, Brazil, Australia etc.


Our Advantages

1. Hourglass worm wheel provides more tooth contact, to ensure higher torque

2. Self-locking feature to enhance the stability and safety factor
3. Easy to install, easy to maintain, and saves considerable installation space.
4. Slewing gear and raceway harden processing technology increase the slew drive lifetime
6. Custom design is available

Technical Sheet of SE Slewing Drives

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204

Package and Delivery

1. Delivery time: 7- 60 days.
2. Payment: T/T, L/C etc.
3. Packaging: plywood box.
