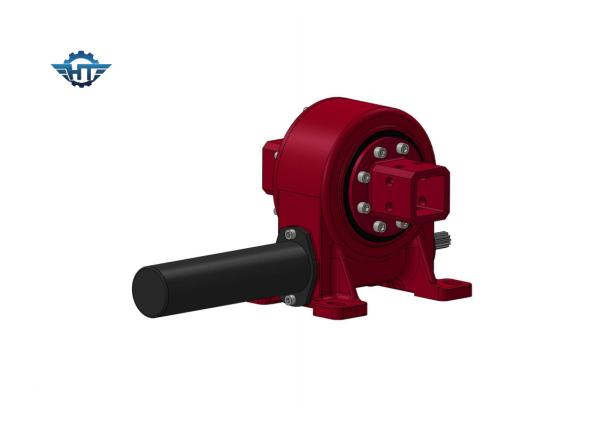

VE7 Worm Gear Slewing Drive Reducer For Axis Solar Tracking
VE7 Worm Gear Slewing Drive Reducer For Axis Solar Tracking
VE7 Worm Gear Slewing Drive Reducer For Axis Solar Tracking
VE7 Worm Gear Slewing Drive Reducer For Axis Solar Tracking
Specifications
Brand Name :
Hangtuo
Model Number :
VE7
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
50Mn, 42CrMo
Model :
VE7
Gear Ratio :
57:1
Output Torque :
5060 Nm
Holding Torque :
40 kNm
Tilting Torque :
5 kNm
Description
Custom Size Worm Gear VE7 Slewing Drive Reducer For Axis Solar Tracking System
Enveloping Worm Gear​ Description

Our VE slewing drives are mainly used for PV, STP, CSP axis solar tracking systems.

We also have multiple types of slewing drives which are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc.

We can also provide multiple sizes of hydraulic motors, DC motors, stepper motors and servo motors to match with slewing drives. Our products have been exported to all over the world.

VE7 Worm Gear Slewing Drive Reducer For Axis Solar Tracking

Features

1. Strong holding torque and tilting torque

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function

Installation Instructions

Horizontal installation & Vertical installation, see below picture.

Tow single sleiwng drives can achieve dual axis slewing drive systems.

One dual axis slewing drive can achieve dual axis slewing drive systems.

One slewing drive with one linear actuator can also achieve dual axis slewing drives.

Technical Sheet of VE Slewing Drive

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Our Packaging & Transport

All slew drives will be packed with fumigration-free wooden case.

Support sea transportation , air transportation, road transportation and express such as TNT, DHL,UPS, EMS, Fedex, etc for sample and small cargo transportation.
