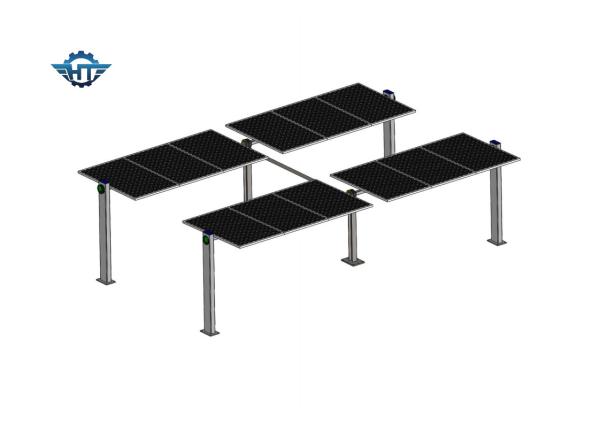

Vertical Single Axis Hourglass Slew Drive Gearbox For Solar Tracking System
Vertical Single Axis Hourglass Slew Drive Gearbox For Solar Tracking System
Vertical Single Axis Hourglass Slew Drive Gearbox For Solar Tracking System
Vertical Single Axis Hourglass Slew Drive Gearbox For Solar Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
6 inch
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~330/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Worm Gear Material :
50Mn, 42CrMo
Model :
6 inch
Gear Ratio :
31:1
Efficiency :
40%
Precision :
≤ 0.1
Gearbox Motor :
12/24V Motor
Color :
Requested
Type :
Vertical Single
Description

Vertical Single Axis Hourglass Worm Gearbox Slewing Drive For Solar Tracking System

Solar Slew Drive Description

A solar slewing drive is a compact design worm gearbox which is widely used in solar tracking systems. It features with self locking, small backlash, high back holding torque, easy installation, maintenence free etc.

Technical Data of VE Series Slewing Drives

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Vertical Single Axis Hourglass Slew Drive Gearbox For Solar Tracking System

Advantages

1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side,

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. Self-locking

7. Easy starting and stopping

8. High accuracy
