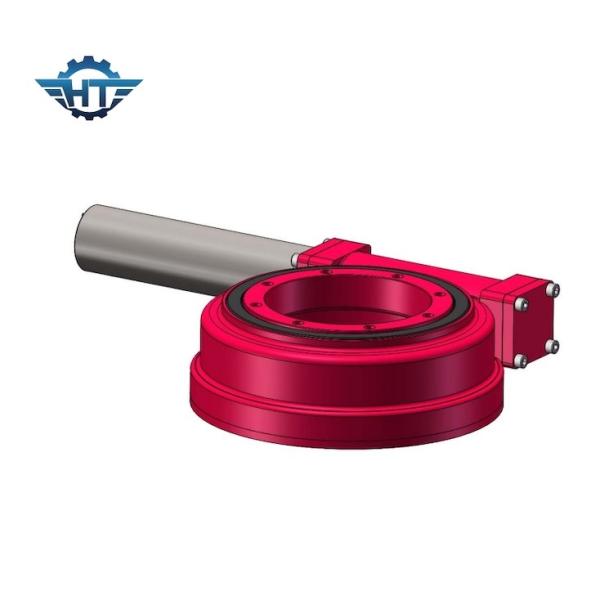

SE9 Solar Tracker Slew Drive, 24vdc Motor, 4400 N.m Torque, 0.03 RPM
SE9 Solar Tracker Slew Drive, 24vdc Motor, 4400 N.m Torque, 0.03 RPM
SE9 Solar Tracker Slew Drive, 24vdc Motor, 4400 N.m Torque, 0.03 RPM
SE9 Solar Tracker Slew Drive, 24vdc Motor, 4400 N.m Torque, 0.03 RPM
Specifications
Brand Name :
HangTuo
Model Number :
SE9 With Motor
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 330~360/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Holding Torque :
30800 Nm
Tilting Torque :
45000 Nm
Output Torque :
4400 Nm
Color :
Silver Or Requested
Static Axial Load :
340 kN
Static Radical Load :
130 kN
Motor :
24 V
Description

SE9 Solar Tracker Slew Drive, 24vdc Motor, 4400 N.m Torque, 0.03 RPM

SE9 Slew Drive Description

9 inch slewing drive

Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also match the electronic motor and hydraulic motor for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.

Our product are produced under strict quality control system in our own factory. Our company have passed ISO9001-2008 quality system certification and JG/T67-1991,JB/T2300-1999 with our country’s engineering & machinery standards.

Parameters of SE9

Model SE9
Ratio 61:1
Rated Output Torque (N.m) 4400
Max Output Torque (3 sec)(N.m) 5612
Rated Rotate Speed (RPM) 0.03
Tilting Torque (N.m) 16000
Holding Torque (N.m) 27200
Axial Load (kN) 60
Radial Load (kN) 130
Efficiency 40%
Precision (°) 0.1
Self-locking Yes
Weight (kg) 49
Installation Holes 8*M16
Center Circle Diameter Φ 224 mm
Inner Hole Φ 198 mm
Work Temperature － 30℃ ~＋80℃ (optional special grease used in colder or hotter places)
Gear Motor Matched 24V, 2RPM, 134W, 180Nm, ＜5A
Warranty Policy Slew drive 5 years, motor 1 year, warranty extension available

Applications

Our SE9 slewing drive can be widely used in PV, CPV, STP, CSP solar tracking systems and construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple size of slewing drive and slewing berarings, hydraulic motor & DC Motor to match with slewing drives.
