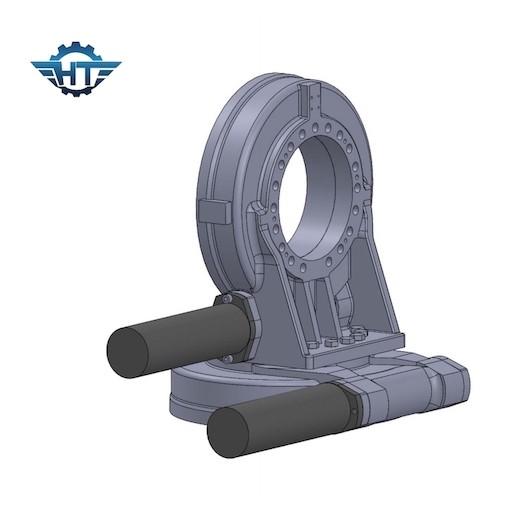

High Torque 17 Inch Worm Gear Slew Drive Dual Axis For Photovoltaic Station
High Torque 17 Inch Worm Gear Slew Drive Dual Axis For Photovoltaic Station
High Torque 17 Inch Worm Gear Slew Drive Dual Axis For Photovoltaic Station
High Torque 17 Inch Worm Gear Slew Drive Dual Axis For Photovoltaic Station
High Torque 17 Inch Worm Gear Slew Drive Dual Axis For Photovoltaic Station
High Torque 17 Inch Worm Gear Slew Drive Dual Axis For Photovoltaic Station
Specifications
Brand Name :
Hangtuo
Model Number :
SDE17
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 1250 usd/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
50Mn, 42CrMo
OEM :
Available
Certificate :
ISO9001, CE
Matched Motor :
Electrical Motor
Package :
Plywood Case
Color :
As Requirement
Precision :
≤0.15°
Description

High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic Station

Dual Axis Worm Gear Slew Drive Description

Slewing ring bearings may be small, but they help do the largest jobs in the business. From swing arm rotation on cranes to the platform on a wind turbine, slewing rings are an integral part of many machinated processes. Welcome to purchase the high quality and functional dual axis slewing drive worm gear for sun tracking system from Hangtuo, an experienced team in solar tracking industry.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model Rated Output Torque (N.m)

Tilting Torque

(kN.m)

 Holding Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(degree)

 IP

Working Tep

(℃)

 Self-locking Weight (kg)
3" 600 1.5 5.8 10 15 31:1 40% ≤0.15 66 -40～+80 Yes 25kg
5" 800 6 9.2 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 34kg
7" 2000 7.5 13.2 34 58 57:1 40% ≤0.15 66 -40～+80 Yes 56kg
9" 4300 16 27.2 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 92kg
12" 5800 25 41 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 160kg
14" 6750 48 45 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 224kg
17" 9460 67 54 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 320kg
21" 16000 89 65 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 492kg
25" 21450 112 89 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 705kg

Features

1. test all of our products for quality and reliability

2. create customized solutions with a 30-year field life

3. all our drives meet the standards set by ISO 9001, CE certifications

4. our components and final assemblies are qualified

5. designed to hold heavy loads and withstand high forces without breaking

6. self-lock, no need of break

7. built with hourglass worm which increase gear engagement

Traceability

1. Customer feedback Contract No & Serial No.

2. Container No.

3. Production date

4. Key component lot No.

5. Key material certificate

6. Inspection Report
