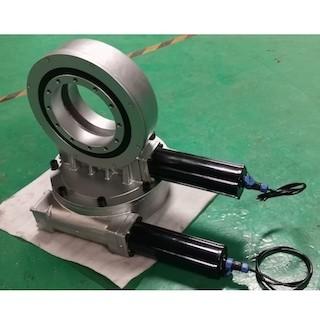

Dual Axis Slewing Ring Drive For PV Panel Solar Tracking System
Dual Axis Slewing Ring Drive For PV Panel Solar Tracking System
Dual Axis Slewing Ring Drive For PV Panel Solar Tracking System
Dual Axis Slewing Ring Drive For PV Panel Solar Tracking System
Specifications
Brand Name :
HT
Model Number :
SDE5"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 120~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
50Mn, 42CrMo
Model :
dual axis 5 inches
Gear Ratio :
37:1
Efficiency :
40%
Application :
solar tracking systems
Certificate :
ISO9001, CE
Installation Site :
Open Field, Flat Roof
Features :
Secure, Quick Installation
Description

3 Inch Single Axis Small Slew Drive With 24VDC Gear Motor For Single Axis Solar Tracking System

Small Slew Drive Description

Slewing drive is a new type of slewing product, usually called slewing bearing, which is usually composed of worm, gear, housing, motor and other components. Since the core components are slewing bearings, they can bear axial force, radial force and overturning moment at the same time. Compared with traditional slewing products, the new slewing drive device has the characteristics of convenient installation, convenient maintenance and larger installation space.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model Rated Output Torque (N.m)

Tilting Torque

(kN.m)

 Holding Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(degree)

 IP

Working Tep

(℃)

 Self-locking Weight (kg)
3" 600 1.5 5.8 10 15 31:1 40% ≤0.15 66 -40～+80 Yes 25kg
5" 800 6 9.2 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 34kg
7" 2000 7.5 13.2 34 58 57:1 40% ≤0.15 66 -40～+80 Yes 56kg
9" 4300 16 27.2 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 92kg
12" 5800 25 41 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 160kg
14" 6750 48 45 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 224kg
17" 9460 67 54 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 320kg
21" 16000 89 65 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 492kg
25" 21450 112 89 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 705kg

Applications

Our dual-axis slewing units generate torque by rotating about two independently separated axes, enabling stable and high-precision transmission over a wide range. Applications include solar trackers, heliostats, concentrated photovoltaics (CPV), and satellite and radio antennas.
