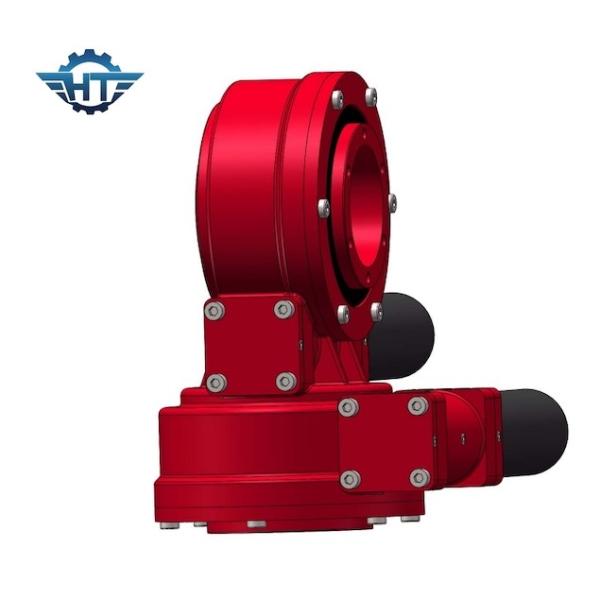

Corrosion Resistant SDE3 Dual Axis Slew Drive Single Step Anti UV Aging
Corrosion Resistant SDE3 Dual Axis Slew Drive Single Step Anti UV Aging
Corrosion Resistant SDE3 Dual Axis Slew Drive Single Step Anti UV Aging
Corrosion Resistant SDE3 Dual Axis Slew Drive Single Step Anti UV Aging
Specifications
Brand Name :
HT
Model Number :
SDE3"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model No. :
SDE3A-31MHD
step :
single step
Tracking Precision :
0.15°
Production Time :
3~45 days
Openness :
Closed
Warranty :
5 years
OEM :
Available
Application :
Satellite Tracking System
Description

High Precision SDE3 Small Size Slewing Gearbox Reducer For Satellite Tracking System

Small Size Slewing Gearbox Description

We manufacture high quality dual axis solar tracker slewing drives. Our products have higher output torque and holding load, excellent tracking accuracy, use FB type skeleton oil seal, anti-UV aging, strong corrosion resistance and good sealing effect.

Our slewing drives can be equipped with a variety of motors, stepper motors, hydraulic motors, and servo motors. We will recommend suitable motors according to different applications of customers.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model Rated Output Torque (N.m)

Tilting Torque

(kN.m)

 Holding Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(degree)

 IP

Working Tep

(℃)

 Self-locking Weight (kg)
3" 600 1.5 5.8 10 15 31:1 40% ≤0.15 66 -40～+80 Yes 25kg
5" 800 6 9.2 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 34kg
7" 2000 7.5 13.2 34 58 57:1 40% ≤0.15 66 -40～+80 Yes 56kg
9" 4300 16 27.2 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 92kg
12" 5800 25 41 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 160kg
14" 6750 48 45 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 224kg
17" 9460 67 54 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 320kg
21" 16000 89 65 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 492kg
25" 21450 112 89 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 705kg

Application

The trough solar collector field includes a plurality of parabolic trough mirrors arranged in parallel. A slewing drive is mounted under the brackets that carry these mirrors so that the single-axis trough mirrors can track the sun from east to west during the day, ensuring that the sun is continuously focused on the receiver tube.
