Electric Motor Slewing Ring Drive Multi Tooth 600 Nm Torque
Electric Motor Slewing Ring Drive Multi Tooth 600 Nm Torque
Electric Motor Slewing Ring Drive Multi Tooth 600 Nm Torque
Electric Motor Slewing Ring Drive Multi Tooth 600 Nm Torque
Specifications
Brand Name :
HT
Model Number :
SDE3"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~504 / pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Material :
42CrMo, QT
Gear Ratio :
31:1
Rated Output Torque :
600 Nm
Holding Torque :
1500 Nm
Tilting Torque :
5800 Nm
Backlash :
0.15°
Rotating Type :
horizontal and vertical
Standard Color :
RAL 9006
Description

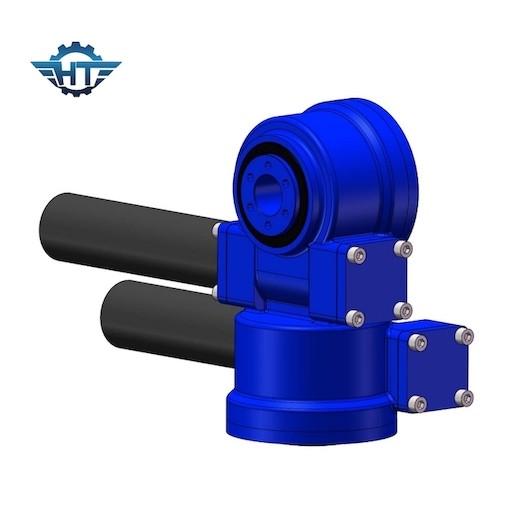

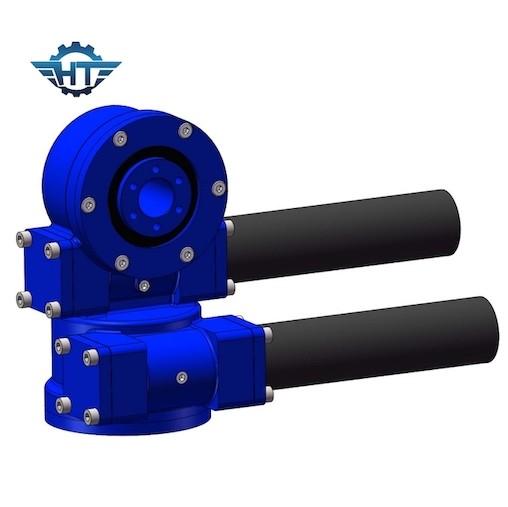

SDE3 Dual Axis Slewing Gearbox With Electric Motor For Solar Panels Tracking System

Dual Axis Slewing Gearbox Description

Slew drives are used for concurrent transmission of axial and radial forces as well as transmission of tilting moments. Slew drives consist of a ball or roller slewing ring, hydraulic or electric drives, and a completely enclosed housing. Series SE slew drives are designed with worm gear.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model Rated Output Torque (N.m)

Tilting Torque

(kN.m)

 Holding Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(degree)

 IP

Working Tep

(℃)

 Self-locking Weight (kg)
3" 600 1.5 5.8 10 15 31:1 40% ≤0.15 66 -40～+80 Yes 25kg
5" 800 6 9.2 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 34kg
7" 2000 7.5 13.2 34 58 57:1 40% ≤0.15 66 -40～+80 Yes 56kg
9" 4300 16 27.2 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 92kg
12" 5800 25 41 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 160kg
14" 6750 48 45 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 224kg
17" 9460 67 54 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 320kg
21" 16000 89 65 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 492kg
25" 21450 112 89 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 705kg

Features

1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function

Applicatons

Under the circumstance that the limited fossil energy resources are over-exploited and utilized, the inexhaustible solar energy resources have attracted global attention. Photovoltaic power generation technology is developing rapidly. The photovoltaic modules are installed on the photovoltaic support. According to their different structural forms, there are two types: fixed type and tracking type. The rotary drive device is installed on the tracking photovoltaic power generation system, so that the fixed bracket becomes a tracking type. Therefore, the working angle of the photovoltaic module can be adjusted according to the altitude or/and azimuth angle of the sun, so that the light-receiving surface of the photovoltaic module can be perpendicular to the sun's rays at any time. possible, thereby receiving more solar energy and increasing power generation.
