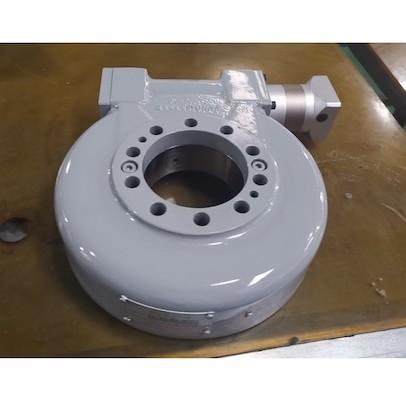

Enclosed House SE7 Slewing Drive, 40% Transmission Efficiency For Trough Concentrator

Trough Concentrator Slewing Drive

The trough thermal power generation system refers to a system that uses a trough parabolic reflector to focus sunlight on a heat collector to heat the heat transfer medium, generate steam in the heat exchanger, and push the steam turbine to drive the generator to generate electricity. It is the most suitable power generation system in solar thermal power generation.

The slewing drive is a special slewing deceleration product derived from the slewing bearing product with high integration, large reduction ratio, simple structure, convenient use and maintenance. The inner and outer rings respectively realize the input and output of driving power, so that the slewing drive can not only realize 360-degree rotation without stop, but also install the driving power source on the basis of the slewing bearing frame at the same time, so its transmission efficiency is high, it is a mechanical A new addition to the transmission family. And because it is essentially a reduction gear, it can also be called a rotary reducer, a turntable reducer or a drive turntable.

The slewing drive is key part in collecting the most heat from the sun for trough concentrator system.

Performance Parameters of SE series

Key Features

1. Large transmission force and compact structure.
2. The meshing tooth surfaces are in line contact, and their bearing capacity is greater
3. The worm drive is a tooth meshing drive, the drive is stable and the noise is small.
4. It has self-locking property, and its reverse self-locking property can play a role in safety protection.

Applications

The sleiwng drive device is used in the tower CSP system to drive the heliostat to "chasing the sun". The slewing drive system of Hangtuo Machinery adopts new technology, which can effectively help owners to reduce the total life cycle cost of slewing drive products, thereby greatly improving the investment rate of return of CSP plants.
