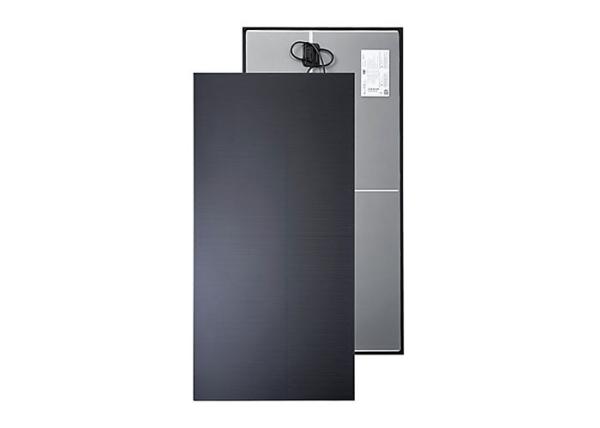

PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Modules
PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Modules
PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Modules
PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Modules
Specifications
Brand Name :
URILIC
Model Number :
PVTF115
Certification :
ISO9001,CE,UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
3 working days after received full payment
Packaging Details :
Plywood
Product Name :
High Efficiency Solar Panels
Nominal Power :
115W
Size :
1200*600*6.8mm
Weight :
12kg
Type :
Thin film solar panels
Usage :
Solar system, Solar wind hybrid system
Description

PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Module

Description:

The thin film high photovoltaic efficiency modules provide a proven performance advantage over conventional crystalline silicon solar modules. Generating more energy than competing modules with the same power rating, the PVTF115 module delivers superior performance and reliability to our customers. The photovoltaic panels lower your cost of energy – reducing utility bills for grid-connected systems and offsetting the cost of fuel and maintenance for generator set powered facilities. And when integrated with energy storage and microgrid master controls, the renewable energy can replace virtually all of the energy from traditional sources.

Technical Data:

Module Rating at Standard Test Conditions (STC)

1000 W/m2, AM 1.5, 25°C
Nominal Values PVTF115

Nominal Power (-0/+5 W)

PMPP (W)

115.0

Voltage at PMAX

VMPP (V)

69.3

Current at PMAX

IMPP (A)

1.66

Open Circuit Voltage

VOC (V)

87.6

Short Circuit Current

ISC (A)

1.83

Module Effi ciency

%

16.0

Maximum System Voltage

VSYS (V)

1500

Limiting Reversing Current

IR (A)

4.0

Maximum Series Fuse

ICF (A)

4.0

Rating at Nominal Operating

Cell Temperature of 45°C

Nominal Power

PMPP (W)

87.0

Voltage at PMAX

VMPP (V)

64.9

Current at PMAX

IMPP (A)

1.3

Open Circuit Voltage

VOC (V)

82.7

Short Circuit Current

ISC (A)

1.5
Temperature Characteristics

Module Operating Range

(°C)

-40 to +85

Coefficient of PMPP

TK (PMPP)

-0.28%/°C

Coefficient of VOC

TK (VOC)

-0.28%/°C

Coefficient of ISC

TK (ISC)

+0.04%/°C

Mechanical Description

Length

1200 mm (47.2 in)

Width

600 mm (23.6 in)

Thickness

6.8 mm (0.27 in)

Weight

12 kg (26.5 lbs)

Area

0.72 m2

Leadwire

2.5 mm2, 610 mm

Connectors

488-1778 (female)

488-1779 (male)

Bypass Diode

None

Cell Type

Thin-fi lm CdTe semiconductor, up to 216 cells

Frame Material

None

Front Glass

3.2 mm heat strengthened

Back Glass

3.2 mm tempered

Encapsulation

Laminate material with edge seal

Load Rating

2400 Pa

Mechanical Drawing:

PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Modules

Solar Panels Features:

  • Generates more energy than conventional crystalline silicon solar.
  • Higher yield when compared with typical c-SI modules, resulting in more installed capacity per square meter.
  • Superior temperature coefficient, better spectral response in humid conditions and better shading response means more specific annual energy yield than c-SI modules.
  • Compatible with advanced 1500V plant architectures.
  • Independently tested to pass accelerated life and stress tests beyond industry standards.
  • Highly predictable energy in all climates and applications.
  • Independently certified for reliable performance in high temperature, high humidity, extreme desert and coastal environments.

PVTF115 High Efficiency Solar Panels Applications:
PVTF115 High Efficiency Solar Panels 115W Double Glass Thin Film Solar Modules
