MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House
MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House
MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House
MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House
MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House
MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House
Specifications
Brand Name :
URILIC
Model Number :
U50M-12
Certification :
UL,CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Plywood box
Product name :
Monocrystalline solar module
Power :
50W
Open Circuit Voltage :
21.5 V
Max. Power Voltage :
18 V
Size :
664*524*25mm
Weight :
3.72kg
Connector :
MC4
Junction box :
≥ IP 65
Description

MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House

Description:
Small solar panels can be applied to portable solar power, solar garden lights, solar traffic lights, small wind and solar hybrid power generation systems and other application scenarios. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.

Fully automatic production process, full online production, online inspection, effectively avoiding the inherent quality problems caused by components during the production process. Improve production efficiency, reduce manual direct operation, mechanical operation keeps the quality of finished components uniform.


Features:

  1. High efficiency monocrystalline solar power panel.
  2. Outstanding low-light performance.
  3. High transmission tempered glass ensure high quaility solar panel.
  4. Solar cells solar panel with durable anodized aluminum frame.
  5. Efficient protection from frame deformation and water accumulation.
  6. Rugged design to withstand high wind pressure and snow load, easy installation.


Product Details:

Model U-50M-12
Peak Power (W) 50±3%
Open circuit voltage (V) 21.5
Peak Voltage (V) 18.0
peak current (A) 2.76
Short-circuit current (A) 2.98
Cell efficiency 21.3%
Maximum system voltage (V) 1000V DC
Rated operating temperature 48±2°C
Working temperature range -40°C- +85°C
Current temperature coefficient 0.1%/°C
Voltage temperature coefficient -0.37%/°C
Power Temperature Coefficient 0.45%/°C
Solar Cell 78*26*0.19mm
Number of cells 72 pcs
Size 664*524*25mm
Weight 3.72 kgs
Surface Packaging Low iron tempered glass/3.2mm
Sealant Ethylene Vinyl Acetate (EVA)
Border Anodized Aluminum/Silver
Junction Box Waterproof Level ≥IP65
Pre-wind pressure 5400Pa
Back wind pressure 2400Pa
Maximum hail impact 25mm/ 23m/s


MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House

50W-12V small solar panel assembly size chart

Our advantage:

  1. High conversion efficiency, high-transmission rate.
  2. Energy saving, environmental-friendly, Safty, No pollution.
  3. Advanced technology, strict quality control system.
  4. Easy installation, safe operation, free maintenance.
  5. 10-year product warranty,12-year warranty at 90% power output,25-year warranty at 80% power output.
  6. Quality in priority, clients the upmost.

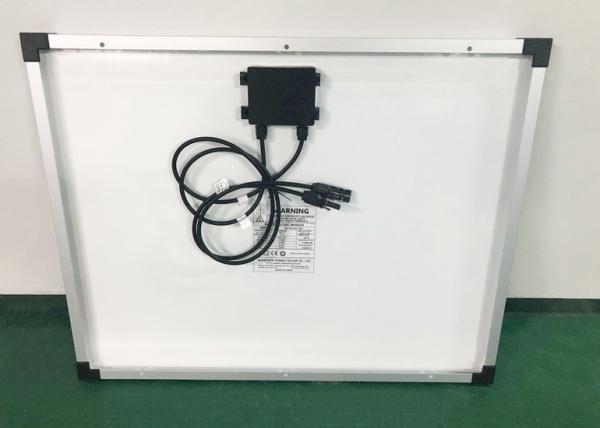

Solar Panel Details Show:

MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House

Solar Cell

High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID

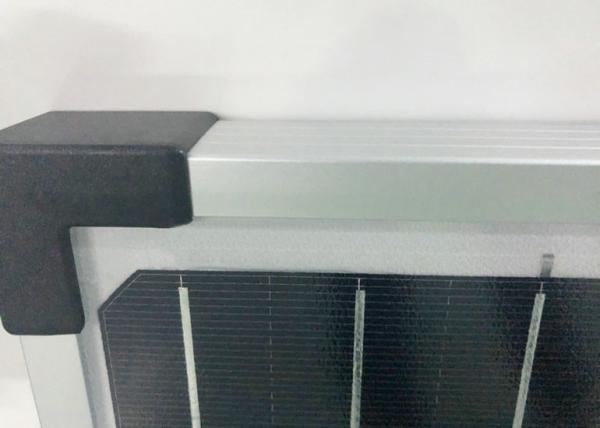

Frame

Frame thinkness>18mm

Oxidation Film>15Pm

TUV&UL standard sillica gel

Ability to resist 5400Pa mechanical pressure

Good anti-corruption performance in seaside environment

Solar junction box

PPO material, IP67.
Quality diode ensures module running safety

Heat dissipation

Long service life
Small Solar Panel Packaging:

MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House

MC4 Connector Monocrystalline Solar Module 50 Watt 18V Solar Panels For Your House

Carton packing: 5 pieces per carton

Size: 560*360*370mm

N.W. 17.5 KGS

G.W. 21.0 KGS
