Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
Specifications
Brand Name :
URILIC
Model Number :
UF300M / UF310M Monocrystalline Flexible
Certification :
ISO9001,CE,UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
3 working days after received full payment
Packaging Details :
Plywood
Product Name :
High Efficiency Solar Panels
Power :
300W-310W
Size :
1661*990*2mm / 1681*1002*2mm
Weight :
4.6kg-4.8kg
Number of Cells :
60 pcs
Solar Cell :
156.75*156.75mm / 158.75*158.75mm
Type :
Moncrystalline Flexible Solar panels
Usage :
Onboard, Automotive, Tourist car, Golf cart
Description

90W 36V Semi Flexible High Efficiency Solar Panels Most Powerful Solar Panel

Description:

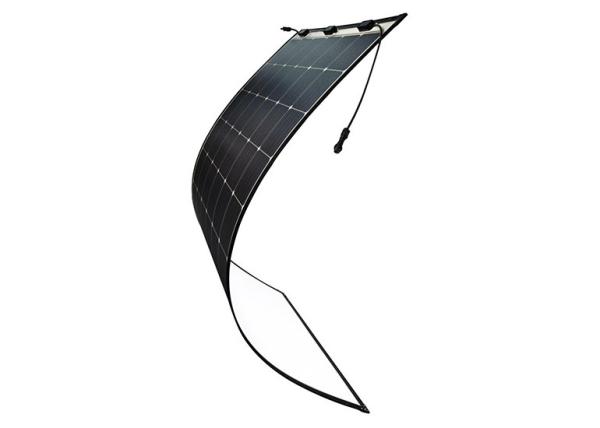

The 300W-310W monocrystalline flexible solar panel is made of tough material, anti-extrusion, light weight, thin thickness, soft and bendable, and good low-light performance. It is widely used in ships, automobiles, tourist vehicles, golf carts, etc.

Product Details:

Parameters UF300M UF310M
Peak power Pm(W) 300W (0/+5W) 310W (0/+5 W)
Open circuit voltage Voc(V) 40.3 40.3
Max.power voltage Vmp(V) 33.0 33.0
Max.power current Imp(A) 9.10 9.32
Short circuit current Isc(A) 9.61 9.84
Module Efficiency(%) 18.2 18.4
Dimensions(L*W*T)/Weight(kgs) 1661*990*2mm / 4.6kgs 1681*1002*2mm / 4.8kgs
Solar cell/No.of cell and connections Mono crystalline silicon
156.75*156.75 / 60 pcs
60 in series		 Mono crystalline silicon
158.75*158.75 / 60 pcs
60 in series
Front cover(material) Transparent ETFE
Encapsulant(material) Independent research and development of patent materials
Back sheet/collor Patent materials / White
Frame(material/collor) NONE
Junction box protection degree IP 68 rated
Cable/Cable connector Model Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm / (MC4)
STC Irradiance 1000W/m2, Cell temperature 25℃, AM=1.5.Tolerances of Pmax, Voc and Isc are within ±5%
NMOT Irradiance 800W/m2, Ambient temperature 20℃, AM=1.5, Wind speed 1 m/s.
Operating temperature limit -40℃- +85℃
Coefficient current TK 0.020 %/℃
Coefficient voltage TK -0.28 %/℃
Coefficient power TK -0.38 %/℃
Life ≥25 years
Warranty 25 years

Solar Panels Features:

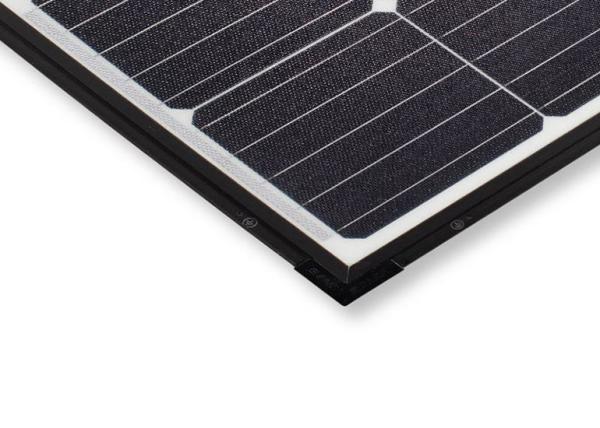

  1. U-shaped structure, frameless, high strengh, not easy to deform, resistant totyphoon hail, trampled and easy to maintain.
  2. Instead of traditional array interval layout. centralized continuouschip installation can increase unit area loading capacity by 50%.
  3. The R Angle design of the module incrases the PV voltage in the morning and evening. Without the traditional frame shielding, the inverter starts early and closes late, increasing the power generation by 3%.
  4. With the function of sound insulation and natural convection cooling ofu-tube, the PV temperature curve can be improved, and the power generation efficiency of the system can be comprehensively improved by more than 5%.
  5. Traditional photovoltaic can only do plane, can be combined with curved plane design: More than one layer of heat insulation and waterproof buildings without waste of surface installation Product, and U-shaped glass building materials, both safety and energy saving aesthetic. A cost two returns: building materials and power generation.
  6. National quality certification and export TUV certification, the vane of green building.
Wipe Application
Light Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure FramelessLight Weight Monocrystalline Pv Panels 300W 310W U Shaped Structure Frameless
