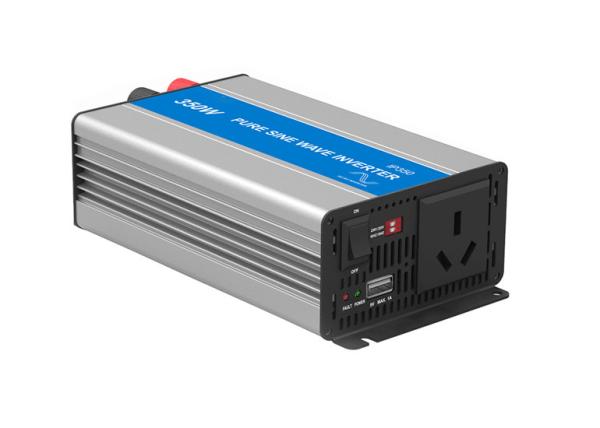

High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
Specifications
Brand Name :
URILIC
Model Number :
NPower Series NP-260-3500
Certification :
CE,UL,ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sets/ month
Delivery Time :
7 working days after received payment
Packaging Details :
Plywood
Product Name :
High Frequency Power Inverter
Rated Power :
350W, 500W, 1000W, 1500W, 2000W
Battery Voltage :
12V, 24V, 48V
AC Outpu :
220V/230V, 110V/120V
Output Frequency :
50HZ / 60HZ
Application :
Off Grid System, Charge Inverter
Weight :
1.0~4.6kg
Enclosure :
IP20
Description

IPower 350W - 2000W High Frequency Power Inverter Pure Sine Wave Inverter 12V - 48V

Description:

IPower series is a kind of pure sine wave inverter which can convert. 12/24/48VDC to 220/230VAC(or 110/120VAC). Industrial design, compared with the civil design, has a wider operating temperature, easy installation and operation. The wide input voltage range is ideal for solar system application. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply etc.

High Frequency Power Inverter Features:

  • Safe design with input and output electrical isolation

  • Adoption of advanced SPWM technology, pure sine wave output

  • Optional output voltage 220/230VAC(or 110/120VAC), choosing by DIP switch

  • LED indicators for fault status and working status

  • Lower No-load consumption

  • Max. efficiency up to 95%(IP2000-22, IP2000-42)①

  • Input protection: Over voltage protection, low voltage protection

  • Output protection: Over load protection, short circuit protection

  • Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when overheating

  • Operational USB output 5VDC/1A

  • Operational RS485 communication port②

① The efficiency is tested at rated input voltage,220V output with resistive load, 25 Ambient temperature,1500W and higher version

② 1000W and higher version support RS485 communication port optional.


Product Details (IP-350):

Model IP-350-12 IP-350-22 IP-350-11 IP-350-21
Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
Input Voltage Range 10.8～16VDC 21.6～32VDC 10.8～16VDC 21.6～32VDC
Input surge voltage ＜32VDC ＜44VDC ＜32VDC ＜44VDC
Output Voltage

2 2 0 V A C ( ± 5%)

230VAC (-7% ~ + 5%)

 110VAC (± 5%)
20VAC (-10% ~ + 5%)
Output Frequency 50/60±0.1Hz
Output Continuous Power 280W
Output Power 15 min. 350W
Surge power 750W
Output Wave 0.2-1(VA lower than output continuous power)
Battery Input voltage range Pure sine wave
Distortion THD THD≤3%① THD≤5%①
Max. Efficiency 91% 92% 90% 91%
No-load current <0.7A <0.5A <0.7A <0.5A
USB Output Port② 5VDC/Max.1A
Binding Post Φ6mm
Overall dimension 214 × 105.5 × 57.7mm
Mounting Dimension 185.5 × 76.7mm
Mounting hole size Φ4.2mm
Net Weight 1.0kg

Product Details (IP-500):

Model IP-500-12 IP-500-22 IP-500-11 IP-500-21
Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
Input Voltage Range 10.8～16VDC 21.6～32VDC 10.8～16VDC 21.6～32VDC
Input surge voltage ＜32VDC ＜44VDC ＜32VDC ＜44VDC
Output Voltage

2 2 0 V A C ( ± 5%)

230VAC (-10% ~ + 5%)

1 1 0 V A C ( ± 5%)

120VAC (-10% ~ + 5%)
Output Frequency 50/60±0.1Hz
Output Continuous Power 400W
Output Power 15 min. 500W
Surge power 1000W
Output Wave 0.2-1(VA lower than output continuous power)
Battery Input voltage range Pure sine wave
Distortion THD THD≤3%① THD≤5%①
Max. Efficiency 92% 91%
No-load current <0.9A <0.5A <0.9A <0.5A
USB Output Port② 5VDC/Max.1A
Binding Post Φ6mm
Overall dimension 232.2 × 132 × 74.5mm
Mounting Dimension 205 × 102 mm
Mounting hole size Φ5.2mm
Net Weight 1.7 kg

Product Details (IP-1000):

Model IP-1000-12 IP-1000-22 IP-1000-11 IP-1000-21
Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
Input Voltage Range 10.8～16VDC 21.6～32VDC 10.8～16VDC 21.6～32VDC
Input surge voltage ＜20VDC ＜40VDC ＜20VDC ＜44VDC
Output Voltage

220VAC / 230VAC (± 5%)

110VAC / 120VAC (± 3%)
Output Frequency 50/60±0.1Hz
Output Continuous Power 800W
Output Power 15 min. 1000W
Surge power 1600W
Output Wave 0.2-1(VA lower than output continuous power)
Battery Input voltage range Pure sine wave
Distortion THD THD≤3%① THD≤5%①
Max. Efficiency 94.5% 92.5%
No-load current <0.8A <0.5A <0.8A <0.5A
USB Output Port② 5VDC/Max.1A
RS485 Com. Port② 5VDC / 200mA
Binding Post Φ10mm
Overall Dimension(mm) 298.3 × 231.5
× 98.5		 284.7 × 231.5
× 98.5		 298.3 × 231.5
× 98.5		 284.7 × 231.5
× 98.5
Mounting Dimension 183 × 220 mm 163 × 219.5mm 183 × 220 mm 163 × 219.5mm
Mounting hole size Φ5.5mm
Net Weight 3.9 kg 3.6 kg 3.9 kg 3.6 kg

Product Details (IP-1500):

Model IP-1500-12 IP-1500-22 IP-1500-11 IP-1500-21
Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
Input Voltage Range 10.8～16VDC 21.6～32VDC 10.8～16VDC 21.6～32VDC
Input surge voltage ＜20VDC ＜40VDC ＜20VDC ＜40VDC
Output Voltage 220VAC (± 5%)
230VAC (-7% ~ + 5%)		 110VAC (± 3%)
120VAC (-7% ~ + 3%)
Output Frequency 50/60±0.1Hz
Output Continuous Power 1200W
Output Power 15 min. 1500W
Surge power 2400W
Output Wave 0.2-1(VA lower than output continuous power)
Battery Input voltage range Pure sine wave
Distortion THD THD≤3%① THD≤5%①
Max. Efficiency 93% 94% 93% 94%
No-load current <1.0A <0.6A <1.0A <0.6A
USB Output Port② 5VDC/Max.1A
RS485 Com. Port② 5VDC / 200mA
Binding Post Φ10mm
Overall Dimension(mm) 326,12×231.5
×98.5		 284.7×231.5
×98.5		 326,12×231.5
×98.5		 284.7×231.5
×98.5
Mounting Dimension 208 × 220 mm 163 × 219.5mm 208 × 220 mm 163 × 219.5mm
Mounting hole size Φ5.5mm
Net Weight 4.6 kg 3.9 kg 4.6 kg 3.9 kg

Product Details (IP-2000):

Model IP-2000-22 IP-2000-42 IP-2000-21 IP-2000-41
Rated Input Voltage 24VDC 48VDC 24VDC 48VDC
Input Voltage Range 21.6 ~ 32VDC 43.2 ~ 60 VDC 21.6 ~ 32VDC 43.2 ~ 60 VDC
Input surge voltage ＜40VDC ＜80VDC ＜40VDC ＜80VDC
Output Voltage

2 2 0 V A C (± 5%)

230VAC (-10% ~ + 5%)

1 1 0 V A C ( ± 5%)

120VAC (-10% ~ + 5%)
Output Frequency 50/60±0.1Hz
Output Continuous Power 1600W
Output Power 15 min. 2000W
Surge power 3200W
Output Wave 0.2-1(VA lower than output continuous power)
Battery Input voltage range Pure sine wave
Distortion THD THD≤3%① THD≤5%①
Max. Efficiency 95% 94%
No-load current <0.6A <0.4A <0.6A <0.4A
USB Output Port② 5VDC/Max.1A
RS485 Com. Port② 5VDC / 200mA
Binding Post Φ10mm
Overall dimension 326.12 × 231.5 × 98.5mm
Mounting Dimension 208 × 219.5mm
Mounting hole size Φ5.5mm
Net Weight 4.6 kg

①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don’t have this port; the port is optional.

Environmental Parameters:

Working Temperature -20 ℃ ~ + 45 ℃
Storage Temperature -35 ℃ ~ + 70 ℃
Humidity <95% (NC)
Enclosure IP20
Altitude < 5000 m (Derating to operate according to IEC62040 at a height exceeding 1000m)

Others

Dielectric Strength Between DC input terminals and metal case:
Test voltage AC500V, 1 minute
Between AC output terminals and metal case:
Test voltage AC1500V, 1 minute

Application Topology:

High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
