Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines
Specifications
Brand Name :
URILIC
Model Number :
Mobile Energy Vehicle Solar Wind Hybrid System
Certification :
ISO9001,CE,UL,IEC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/ month
Delivery Time :
5-30 work days
Packaging Details :
Multiple packaging
Product Name :
Solar Wind Hybrid System
Solar Panels :
Design as needed
Wind Turbines :
600W, 1000W
Controller Type :
MPPT Controller
Design life :
At least 20 years
Usage :
Off Grid, Household power supply
Wind Turbine Connection :
Flange connection
System :
Household Power Supply Solar Wind Hybrid System
Description

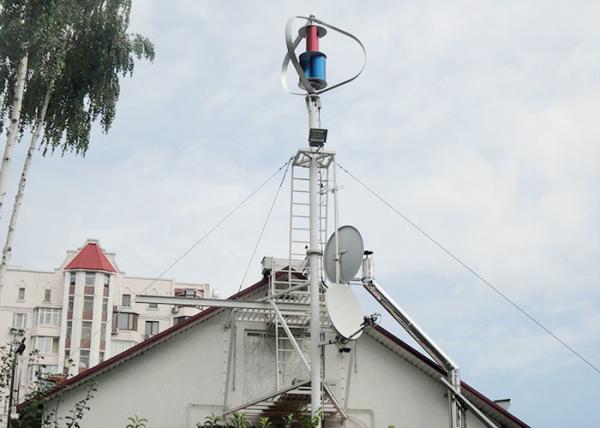

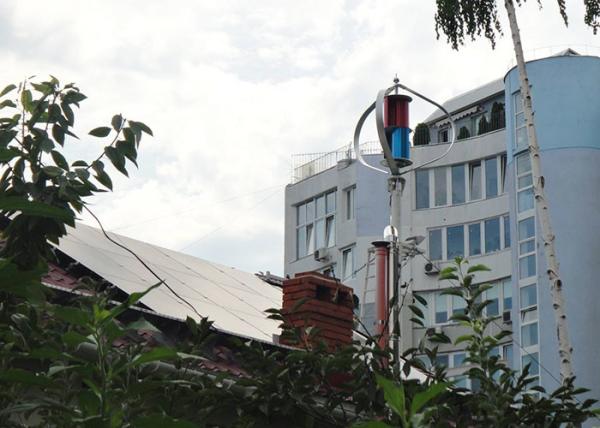

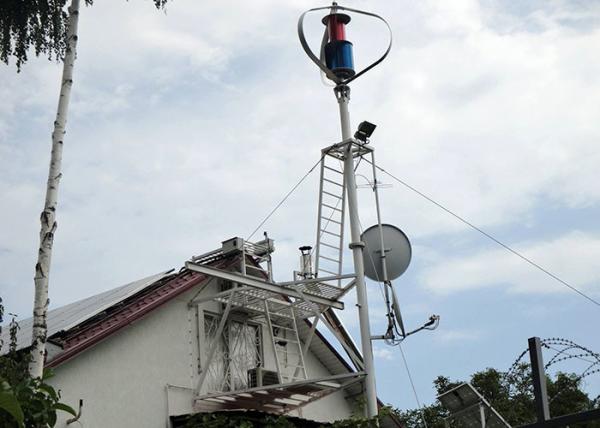

Residential Solar And Wind Power Systems Solar Wind Hybrid System in Ukraine

Environmental overview:

The environmental conditions of this program are recommended to be annual average wind speed over 4 m / s, annual average solar radiation is 5500 MJ / M2, design annual average peak sunshine peak time is 3 hours / day. The installation environment temperature is 8 ° C -50 ° C, the relative humidity is 5% - 90%.

Typical Configuration:

  • 1KW/48V wind turbine, designed and installed with a height of 7 meters;
  • The specifications of solar photovoltaic panels are 320W/36V, 2 strings of 10 and a total of 20 pieces, and the solar panel is designed for removable structure;
  • One wind and solar hybrid controller, input AC15—200V, output DC48V DC power;
  • 1 solar charging controller, power 3000W;
  • Battery configuration specifications are 200AH/12V, 4 series 4 and a total of 16 pieces, designed to have a discharge depth of 80%, and the designed space number is one and a half days (no wind and no sun).
  • One inverter, the power is 4500W, and the design full-power inverter efficiency is 90%.
Serial numberDevice NameSpecification modelNumberRemarks
1Magnetic Suspension Wind Turbine1KW48V1
2Solar photovoltaic panel320WP/36V20Monocrystalline silicon
3Wind and solar hybrid controller1KW/48V1
4Solar charge controllerDC48V1
5InverterDC48V-AC220V1
6Battery200AH/12V16Colloidal battery

►Specific configuration can be designed according to local climate resources.

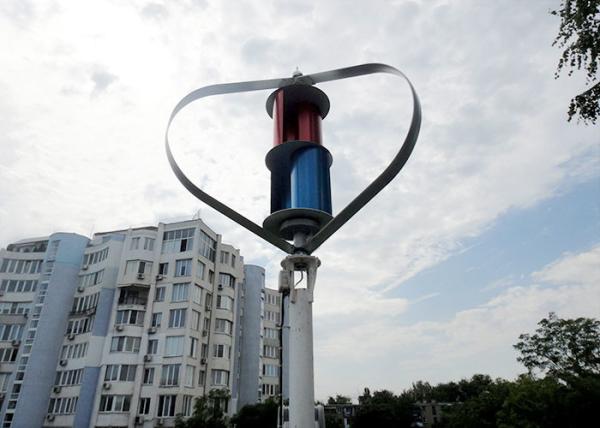

Hot-selling Maglev Vertical Axis Wind Turbine:

Items

60024/48

100024/48

Rated power

600W

1000W

Dimension
(Height/Diameter)

Ø1100/1250

Ø1500/1760

Weight

32kg / 35kg

55 kg / 57kg

Blade material

Aluminum Alloy

Aluminum Alloy

Blade quantity

3

3

Swept area ㎡

1.2

1.8

Min starting wind speed

1.3m/s

1.5 m/s

Cut-in wind speed

2 7m/s

3.5m/s

Rated wind speed

12m/s

13m/s

Cut-off wind speed

15m/s

15m/s

Survival wind speed

65m/s

60m/s

Generator type

AC,3Phases

AC,3Phases

Controller Output Voltage

24V/48V

24V/48V

Controller Braking System

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

Ambient Temperature

-40～50 ℃

-40～50 ℃

Noise

Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db

System Features:

Both wind and solar energy are clean energy. With the maturity of photovoltaic power generation technology and wind power generation technology and the continuous improvement of products in the process of practical use, it has laid a foundation for the promotion and application of wind and solar hybrid power generation systems. The wind-solar hybrid power generation system promotes the development of China's energy conservation and environmental protection cause and promotes the construction of a resource-saving and environment-friendly society.


In short, it is believed that with the reduction of equipment material costs, the development of science and technology, and the introduction of government support policies, the clean, green and environmentally friendly new energy power generation system will be more widely used.
