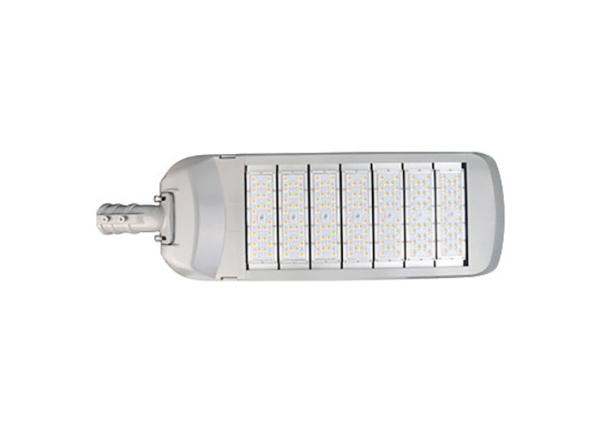

350 Watt High Power LED Street Light U-SL1807-350W LED Light Street Lamp

Description:

350 Watt LED Street Light offered comprises advanced LED based street lights that are efficient in usage and provide for simple replacement of existing lamp units. For longer service life, the lights also come with pressure die casted aluminum finish with Ip rating of IP60.

The difference between LED street lights and conventional street lights is that LED light sources use low-voltage DC power supply, and high-efficiency white light synthesized by GaN-based power blue LEDs and yellow. Unique advantages, can be widely used in roads.

We are a leading manufacturer, exporter and supplier of High Power LED Based Street Lights that are extensively used in various applications in an efficient manner. Our expert team of professionals has designed these Led based Street Light for a simple replacement of already existing lamp unit without causing any expense and disruption of shifting the lamp post or wiring already done.

Quick Detail:

1. With air duct heat dissipation design, the overall weight of the product is reduced and the heat dissipation performance is good, reducing light decay and prolonging the life of the light source. The mainstream CHEM modular design reduces maintenance costs for later use.
2. Fast response, no stroboscopic; wide operating voltage range.
3. Green and environmental protection, the light source has no ultraviolet, infrared radiation, and no mercury pollution.
4. -10 ~ 15° angle adjustable and applicable different mounting arm.
5. Easy replacement of the entire LED module and electronic system by removing the top cover. Double Clip on closure,"Plug and Play" system suitable for SKD.
6. These LED street lights feature use of efficient light-emitting diode (LED) of 30 Watts that requires input voltage of 85-275 V AC and has power factor of >0.9 and harmonic distortion of <20%.
7. Rugged and long-lasting, up to 50,000 hours; no need to change fixtures frequently, no routine maintenance required.
8. Beautiful appearance without dust, protection class IP66.
9. The light body could be opened and inspected by hand with tool free.

Mechanical Drawing:

Distribution Curve:

Installation Diagram:

1. Insert the lamp horizontally into the light pole pick arm, suitable for light pole pick arm φ60mm;
2. After ensuring that the lamp is stable, tighten the M10 hex socket head cap screw. Make the lamp firmly on the pick pole arm;
3. Connect the blue line of the lamp power input line to the zero line of the city power line; connect the brown line to the main line of the city power line; connect the yellow green line to the ground line.
