Specifications
Brand Name :
URILIC
Model Number :
U-SL2603-150W
Certification :
ETL, DLC, ENEC, TUV, CE
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Product Name :
LED Street Light
Power :
150W
LEDs Qty. :
84 pcs
Input Voltage :
90-305V/249-528V AC,50-60Hz
Housing Material :
Aluminium 6063-T5
Net Weight :
6.4kg
Light Size :
710x340x151mm
Packing Size :
785x390x185mm
Description

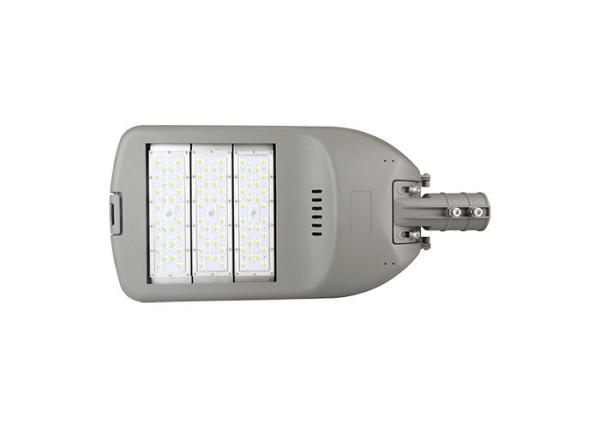

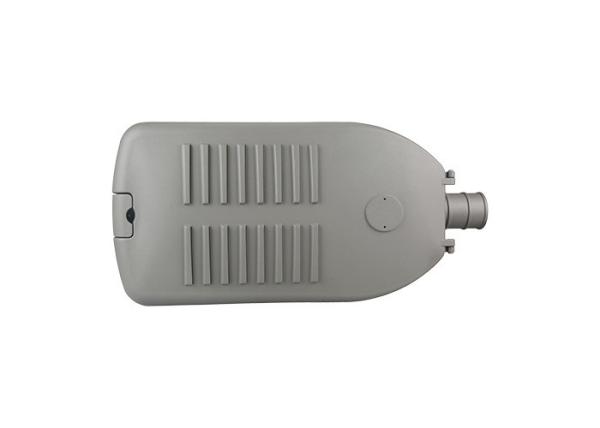

Factory Price Street Led Light Ultra Brightness 4000K Street Road Lamp Watt 150W

Description:

LED street lights are different from conventional street lights in that LED lights have the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed, and high color rendering index. Factory price street led light ultra brightness aluminium housing IP66 street road lamp watt 100W 150W led street light.

LED is an energy-saving street light, and the efficiency of the driving power supply must be high. It is particularly important for the structure in which the power supply is installed in the street light fixture. Because the luminous efficiency of LED street lights decreases as the temperature of LED street lights increases, the heat dissipation of LEDs is very important. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.

Quick Detail:

  1. Type I,II,III lens optional. Uniform light distribution apply to different street light project.

  2. Excellent operating temperature -40℃~50℃.

  3. Replaceable and upgradable modular design easy assembly,easy installation and easy maintenance.

  4. Green product,No UV,IR radiation or mercury pollution.

  5. For -10~15° angle adjustable and applicable different mounting arm.
  6. With excellent housing design reach IP66/IK20 rating.

  7. Vibration resistant and surge protection 10KV/20KV.

  8. Easy replacement of the netire LED module and electronic system by removing the tope cover.

  9. Double Clip on closure,"Plug and Play" system suitable for SKD.

  10. Dimming and smart lighting system available upon request.

  11. Life-span over 50,000 hours,5 years warranty.

Distribution Curve:

Ultra Brightness 4000K Led Road Lamp 150W  Energy Saving -10~15° Angle Adjustable

Product Details:

Model U-SL2603-150W
Power 150W
Luminous efficiency 155-160 Lm/W
Luminous Flux 23250 lm
CCT 3000K/4000K/5000K/5500K
CRI ≥70
Power supply MOSO/MEANWELL/SOSEN
LEDs 5050 LED
LEDs Qty. 84 pcs
Beam angle Type I,II,III
IP/IK rate IP66,IK10
Working voltage 90-305V/249-528V AC,50-60Hz
Working temperature -40°C~50°C, 20%~90% H.R.
Storage temperature -40°C~85°C, 10%~90% H.R.
Power Efficiency 90%
PF >0.95
Lifespan >50000H
Light pole size Φ60mm
Housing material Aluminium 6063-T5
Lamp size 710*340*151 mm (±5mm)
Package size 785*390*185 mm (±5mm)
Net weight 6.4 kg (±0.1kg)
Inclination angle Horiziontal & Vertical ±15°

Mechanical Drawing:

Ultra Brightness 4000K Led Road Lamp 150W  Energy Saving -10~15° Angle Adjustable

Installation Diagram:

Ultra Brightness 4000K Led Road Lamp 150W  Energy Saving -10~15° Angle Adjustable

  1. Correctly connect the lamp's own cable and engineering cable (connect the blue input line of the lamp power supply to the zero line of the city power line; connect the brown line to the mains power line; connect the yellow-green line to the ground line), and plug the wire Into the light pole.
  2. Insert the lamp vertically or horizontally into the light pole pick arm, depending on the light pole. Suitable for light pole pick arm φ60mm;
  3. After ensuring that the light fixture is stable, tighten the M10 hex socket head screw of the light fixture pressure plate to make the light fixture firmly on the light pole pick arm.

Ultra Brightness 4000K Led Road Lamp 150W  Energy Saving -10~15° Angle Adjustable

Applications:

LED street lights are mainly used for road lighting such as main roads, secondary roads, branch roads, factories, schools, gardens, city squares, and courtyards.
