Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz
Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz
Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz
Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz
Specifications
Brand Name :
URILIC
Model Number :
U-SL29-M-80W-100W
Certification :
ETL, DLC, ENEC, TUV, CE
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Product Name :
Medium Power LED Street Light
Power :
80W-100W
LEDs Qty. :
72 pcs
Input Voltage :
90-305V/249-528V AC,50-60Hz
Housing Material :
Aluminium 6063-T5
N. W. :
6.2kg
Lamp Size :
670x280x122mm
Packing Size :
720x330x178mm
Description

80W 100W Medium Power LED Street Light Outdoor Roadway Light IP66 Led Light

Description:

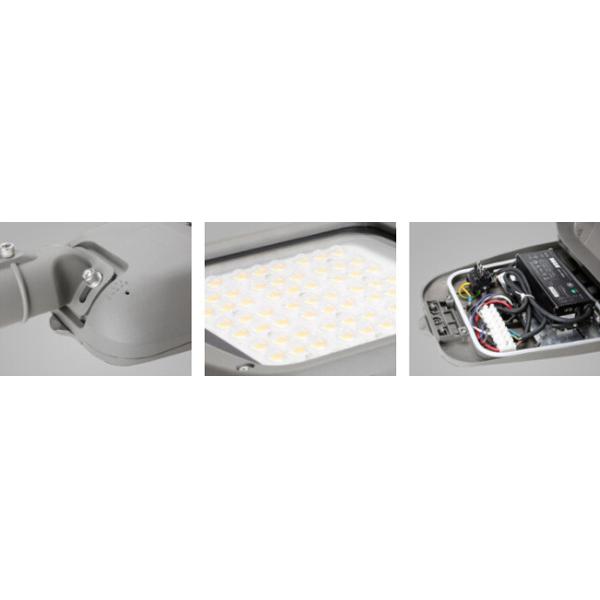

Vertical and Horizontal installing way both availlable. Quick installing,wind against support bracket to ensure the safe installing and maintence. Easy open button on the top of the boday save the cost of maintence. IP66 passed in factory own lab,have strong sealing material on the front and back. Tempered front glass with IK08 certificate. Good performance of the heat dispation design ensure the longer life time. Electrical parts include driver,SPD,cut off switch. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.

Street lamps, street lamp manufacturers, professional custom production of various lamps, spot supply, quality assurance, transparent price, factory direct sales, fast delivery, welcome friends from all walks of life to consult and buy.

Quick Detail:

Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz

  1. Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects.

  2. Excellent operating temperature -40~50°C

  3. -10~10° adjustable bracket applicable different mounting arm.

  4. With excellent housing design reach IP66/IK08 rating.

  5. Buckle design realize tool-free maintenance.

  6. Automatic cut-off design.

  7. Dimming and smart lighting system available upon request.

  8. Long service life over 50,000 hours, 5 years warranty.

  9. Easy replacement of the netire LED module and electronic system by removing the tope cover.

Product Details:

Model U-SL29-M-80W-100W
Power 80W-100W
Luminous efficiency 130-140 Lm/W
Luminous Flux 10800-13500 lm
CCT 3000K/4000K/5000K/5500K
CRI ≥70
Power supply MOSO/MEANWELL/SOSEN
LEDs 5050 LED
LEDs Qty. 72 pcs
Beam angle Type II-M,III-M,IV-S
IP/IK rate IP66,IK08
Working voltage 90-305V/249-528V AC,50-60Hz
Working temperature -40°C~50°C, 20%~90% H.R.
Storage temperature -40°C~85°C, 10%~90% H.R.
Power Efficiency 90%
PF >0.95
Lifespan >50000H
Light pole size Φ60mm
Housing material Aluminium 6063-T5
Lamp size 670*280*122 mm (±5mm)
Package size

720*330*178 mm (±5mm) (1PCS)

720*330*268 mm (±5mm) (2PCS)
Net weight 6.2 kg (±0.1kg)
Inclination angle Horiziontal & Vertical ±10°

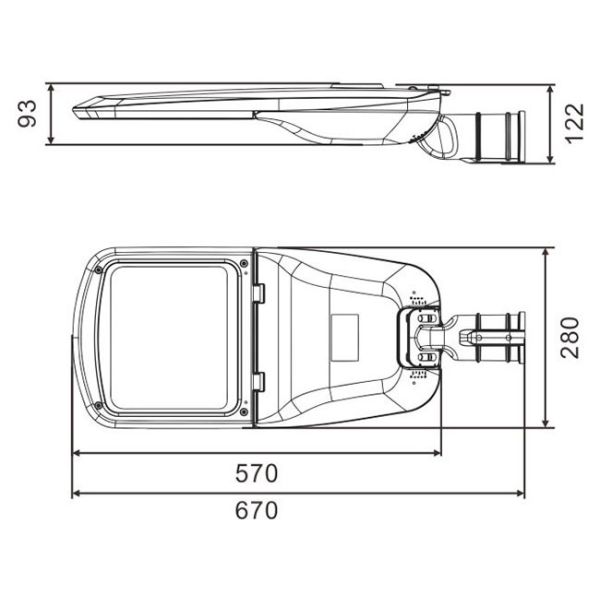

Mechanical Drawing:

Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz

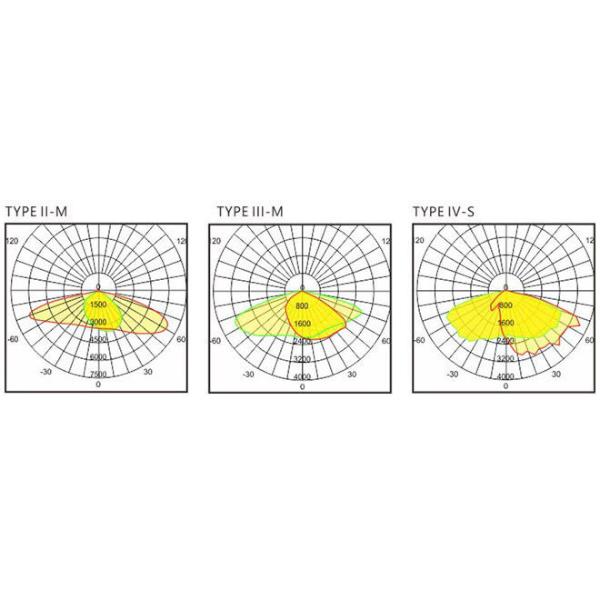

Distribution Curve:

Medium Power Led Light Street Lamp , Outdoor Roadway Light IP66 80W 100W 50-60Hz

Applications:

Main scope of application: community, school, square, beautiful countryside, tourist attractions, parking lot, rural solar street lights, etc. Applicable height: 3-10m. Car Park, Village Road Light.
