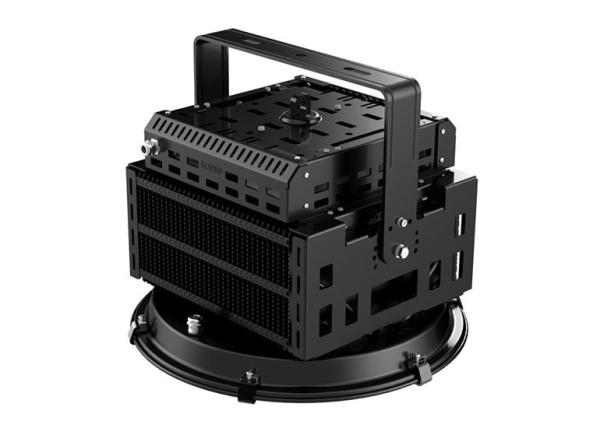

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
Specifications
Brand Name :
URILIC
Model Number :
FL-SPL-100W-1000W
Certification :
ETL, ENEC, TUV, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Wattage :
100W-1000W
Product Type :
High Power Round LED Spotlight
Ultra Bright :
45000Lm
Lumen Efficacy :
90 LPW
IP Rating :
IP66
Color :
Black / Silver Grey
Operating Temperatre :
-40℃～85℃
U-shaped Bracket :
Iron or Aluminum
Description

500W Outdoor LED Flood Lights 100W to 1000W High Power Round LED Spotlight

Description:

Factory direct LED flood light 100W / 150W / 250W / 500W, Mingwei Power LED flood light 500W, new fin LED remote projection light 500W, explosion-proof LED tower pendant light 500W, large LED stadium light 500W.

Professional light distribution

Professional projector lamp desgn concept, have 5° to 10° to 20° to 30° to 60° andles such as reflective cup selection, satisfy the professional light distribution, widely applicable scope. with 5 beam angle projection distance of up to 500m, is a real sense of tall building lingting products.

Features:

  1. The heat sink uses 1060 pure aluminum sheet, which has good heat and heat transfer effects. It is designed and manufactured using the FIN process and patented technology.
  2. The contact area between the aluminum substrate and the heat sink is increased and it is in close contact with the gap, which reduces the air thermal resistance and accelerates the heat conduction of the aluminum substrate.
  3. Each fin has air holes, and the fins are connected to form a ring-shaped air convection channel, so that the high temperature heat in the body is led out by air convection or heat sinking.
  4. The number of fins reaches 42, which has a large contact area with the air, and has good ventilation and convection effect. The measured temperature is at least 5 (MR16-3W) lower than the aluminum process of the same power car, and 11 degrees (PAR38) lower.
  5. The power supply is placed in a ring-shaped power supply box with insulation and flame retardance, which complies with safety testing to ensure safe use. There are air convection holes above and below, so that the heat generated by the power supply is diffused into the air through air convection, which reduces the internal temperature of the power supply, prolongs the service life of the power supply, and ensures the use time of the lamp.
  6. Assemble with card structure, simple process, easy assembly, fast mass production, reduce parts and assembly time, and greatly improve the work efficiency of the enterprise.
  7. The light body structure is light, only 60%-70% of the aluminum weight of the car, there is no need to fill the thermal silica gel in the power box, which reduces the production, maintenance costs and transportation costs of the enterprise.

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation

HDT technology

High efficient heatpipes contact the heat source directly, maxima the performance of the heatpipe to reach the cooling effect.

Coopper heatpipe

Heat pipe by using the theory of heat transfer and refrigeration, rapid heat transfer properties of the medium to transfer heat quickly to the heat source, thermal capacity than any known metal.

3-D heat dissipation

Each fins are distributed parallel relative to hollow out holes, or so appear a convection of air duct, and fins clearance form three-dimensional heat dissipation, send out quantity of heat to the greatest extent.

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation

Gear Slotting Fin technology

With zipped-fins technology , the convection airflow is evenly distributed in the cooling fins, optimizing the cooling effect.

Zipped Fin technology

The fins couple into the base of the heatsink tightly, minimum the heat transfer resistance.

Chimney uniform cooling

High purity aluminum reflectors perfectly combination with the PCB and the body of heatsink, form a integration cooling structure. All lamp of aluminum for heat dissipation, increase the performance of the total lamp heat dissipation, extending life span of light source.

Incomparable Heatsink Housing

By riveting the heat pipe to the fins, combine with the Fluence HDT, seamless fitting and FIN fastening patent technology, to maximize the cooling area of the smallest weight; By using the heatpipe, the heat generated by the lighting quickly transfers to the cooling module of massive radiation fins, efficiently reduce the temperature of the LED lighting chips and extend the lifespan of he lighting source.

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation

Specifications:

Power
Lumen
Efficacy
LED
Angle
(°)
Size
(mm)
N. W.
(KG)
Packing Size
(cm)

G.W.

(KG)
100W 9000LM 90LM/W XTE 5/10/20/30/60 Φ316*H347 5.7 38*38*38 7.3
150W 13500LM 90LM/W XML2 5/10/20/30/60 Φ316*H347 6.2 38*38*38 7.7
250W 22500LM 90LM/W XTE 5/10/20/30/60 Φ472*H361 10.5 38*38*38 12.7
500W 45000LM 90LM/W XML2 5/10/20/30/60 Φ480*H390 17.8 38*38*38 22.0
1000W 90000LM 90LM/W XHP50 5/10/20/30/60 Φ480*H390 24.0 38*38*38 26.0

100W-150W

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation

250W

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation

500W-1000W

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation

Applications:

This series lights are mainly used for outdoor building exterior wall lighting, high building outline lighting, prominent lighting,and large football fields, rugby fields, golf courses, ski resorts, racetracks and professional basketball courts.

45000Lm Ultra Bright High Power Round LED Spotlight 100-1000W 3D Heat Dissipation
